7 6

Wa t l o w M

I N I

C

H E F

2 0 0 0

A p p l i c a t i o n 1 7

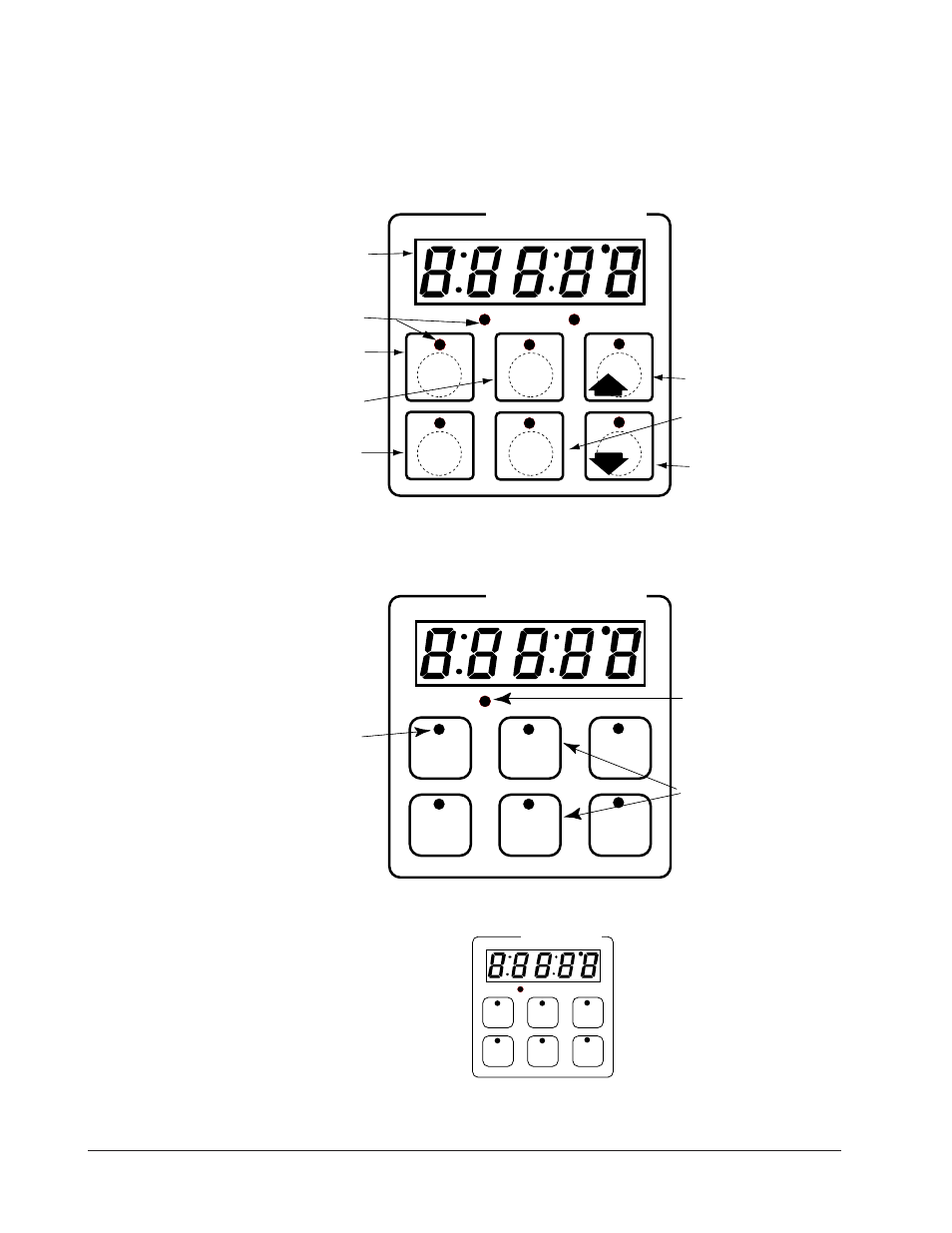

Key Functions in Configuration Mode

Key Functions in Operation Mode

Summary of Input/Output Functions

Note: For details, see wiring instructions in the

Hardware & Software Setup Guide.

Input 1 Fryer Temperature

Input 2 not used

Event Input 1 not used

Event Input 2 not used

Output 1 Heat

Output 2 not used

Event Output 1 not used

Event Output 2 not used

Output 5 Audible Alarm

Heat

Menu 1

Menu 2

Menu 3

Menu 4

1

2

3

4

5

6

Your Company Logo

Heat

Menu 1

Menu 2

Menu 3

Menu 4

1

2

3

4

5

6

Your Company Logo

Menu Key 1... Menu 1
Menu Key 3 ... Menu 3
Menu Key 4 ... Menu 2
Menu Key 6 ... Menu 4

Menu keys activate and
cancel menus, activate
cook cycles when
preheating, and
acknowledge alarms.

Menu Key Indicator
Lights
Slow flash...Preheating
Rapid flash...Ready
Full on...Cooking
Rapid flash... Done

Heat Indicator Lights
Lit when heat is on.

Not used

A

B

D

E

G

H

Enter

Escape

Home

Edit

C

F

M

INI

C

HEF

2000

Display five-digit, seven-
segment numeric LED
display.

Indicator lights
(1 for each key, 2 for heat
channels).

Edit key (A) Access the
next level of parameters or
values.

Enter key (B) Enter the
value and return to
previous level.

Home key (D) Move to
Operation Mode with a
two-second key press.

Up key (C) Move up the
lists.

Escape key (E) Return to
original value when editing
a parameter value.

Down key (F) Move down
the lists.
