Wa t l o w M i n i C h e f 2 0 0 0
A p p l i c a t i o n 1 4

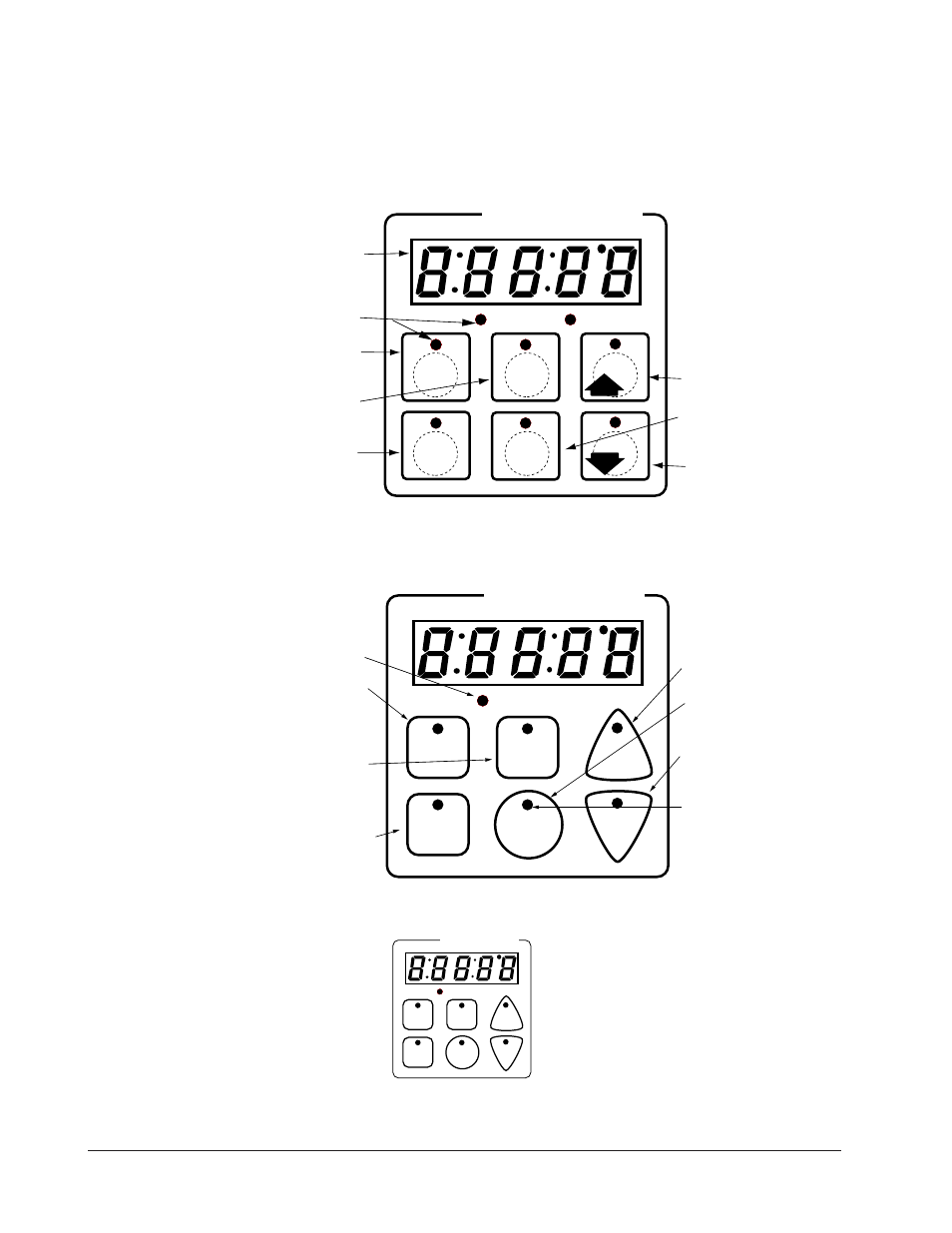

Key Functions in Configuration Mode
Key Functions in Operation Mode
Summary of Input/Output Functions
Note: For details, see wiring instructions in the
Hardware & Software Setup Guide.
Heat
1
Idle 1
Temp
2
Idle 2
Time
4
5
Start/
Stop
6
Down
Your Company Logo
3
Up
Input 1 Fryer Temp
→
Input 2 not used
→
Event Input 1 not used
→
Event Input 2 not used
→
→
Output 1 Heat
→
Output 2 not used
→
Event Output 1 Close Pressure Valve
→
Event Output 2 not used
→
Output 5 Audible Alarm
Menu
Select
Heat
1
Idle One
Temp
2
Idle Two
Temp
5
Start/
Stop
6
Down
Your Company Logo
3
Up
4
Menu
Select
Heat indicator light Lit
when heat output is on.
Idle One Temp View or
program idle set point 1.
Indicator light will flash
slowly when controlling to
set point.
Idle Two Temp View or
program idle set point 2.
Indicator light will flash
slowly when controlling to
set point.
Menu Select Enter menu
mode or select menu.
Increment Scroll through
valid menus.
Start/Stop Activate or
cancel active menu.
Decrement Scroll through
valid menus.
Start/Stop Indicator Light
Slow flash...Preheating
Rapid flash...Ready
Lit...Cooking
Off...Done.
A
B
D
E
G
H
Enter
Escape
Home
Edit
C
F
M
INI
C
HEF
2000
Display five-digit, seven-
segment numeric LED
display.
Indicator lights
(1 for each key, 2 for heat
channels).
Edit key (A) Access the
next level of parameters or
values.
Enter key (B) Enter the
value and return to
previous level.
Home key (D) Move to
Operation Mode with a
two-second key press.
Up key (C) Move up the
lists.
Escape key (E) Return to
original value when editing
a parameter value.
Down key (F) Move down
the lists.
