NANO-QM871 EPIC SBC

Page 68

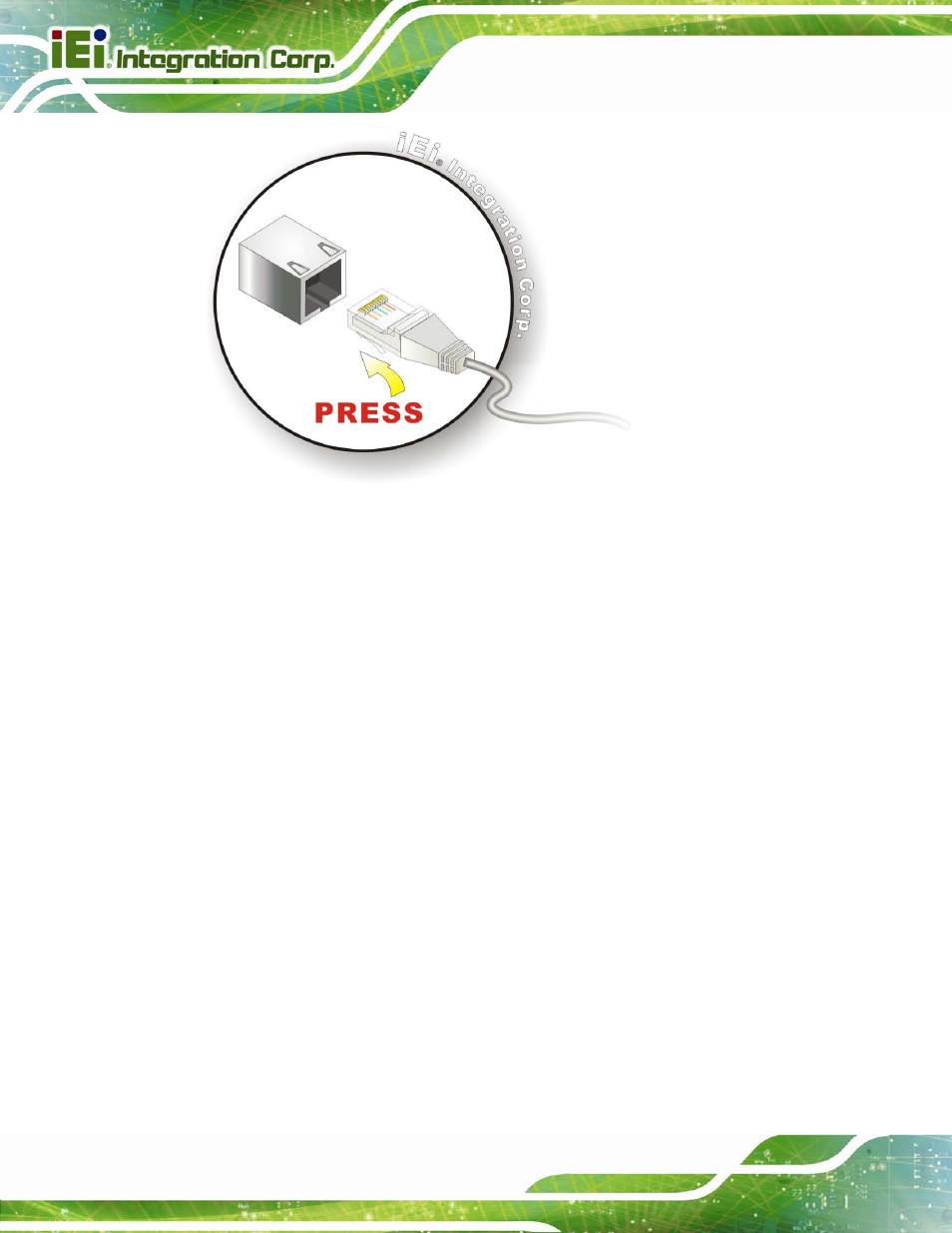

Figure 4-18: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:

4.9.3 USB Connection (Dual Connector)

The external USB 2.0/3.0 connectors provide easier and quicker access to external USB

devices. Follow the steps below to connect USB devices to the NANO-QM871.

Step 1:

Locate the USB 2.0/3.0 connectors. The locations of the USB 2.0/3.0

connectors are shown in Chapter 3.

Step 2:

Insert a USB 2.0/3.0 plug.

Insert the USB 2.0/3.0 plug of a device into the

USB 2.0/3.0 on the external peripheral interface. See Figure 4-19.
