NANO-QM871 EPIC SBC

Page 32

3.2.14 Power Connector (12V)

CN Label:

PWR1

CN Type:

4-pin connector

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-16

The power connector is connected to an external power supply and supports 12V power

input. Power is provided to the system, from the power supply through this connector.

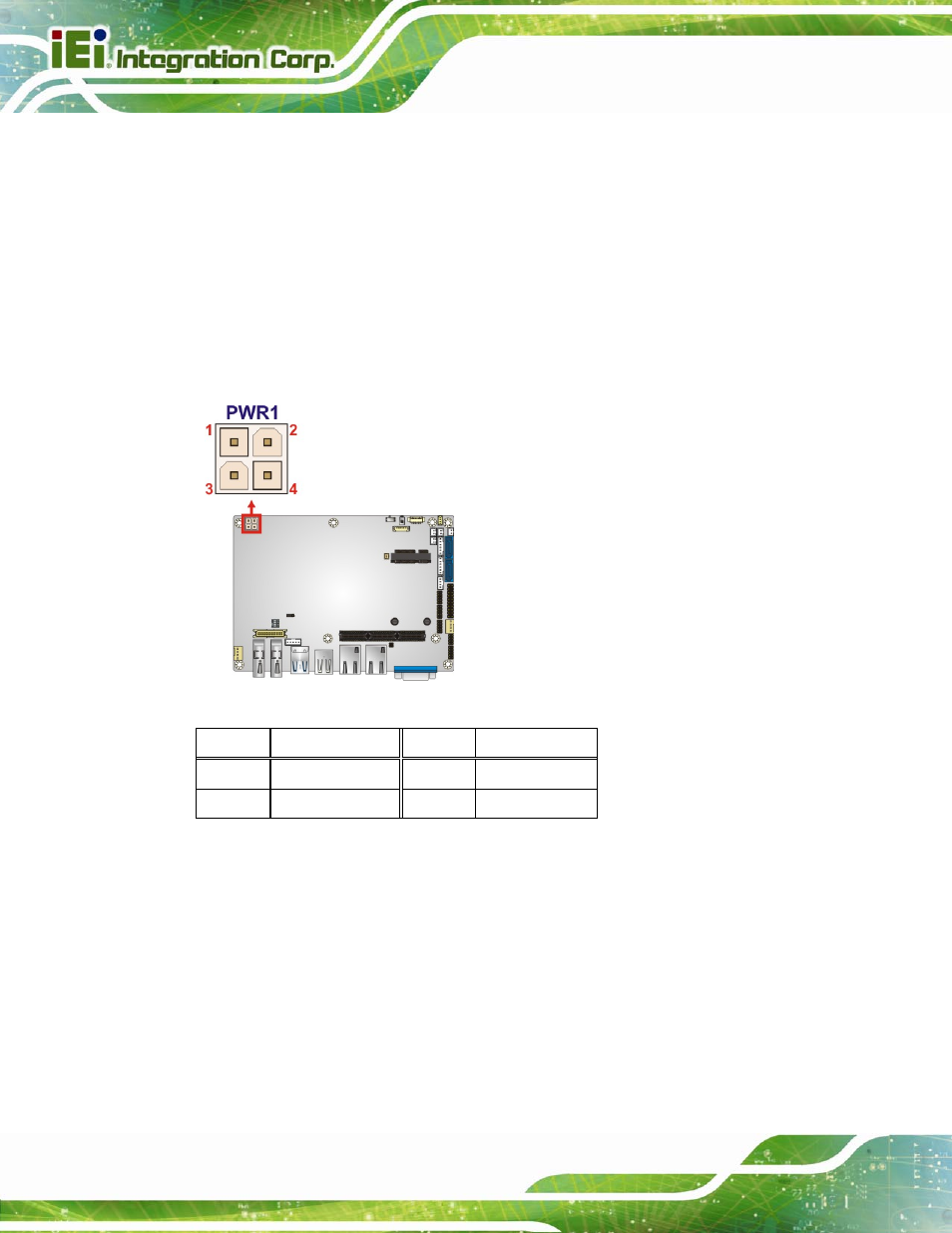

Figure 3-15: Power Connector Location

Pin Description Pin Description

1 Ground

2 Ground

3 +12V

4 +12V

Table 3-16: Power Connector Pinouts

3.2.15 Power LED and HDD LED Connector

CN Label:

F_PANEL1

CN Type:

6-pin wafer

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-17
