NANO-QM871 EPIC SBC

Page 64

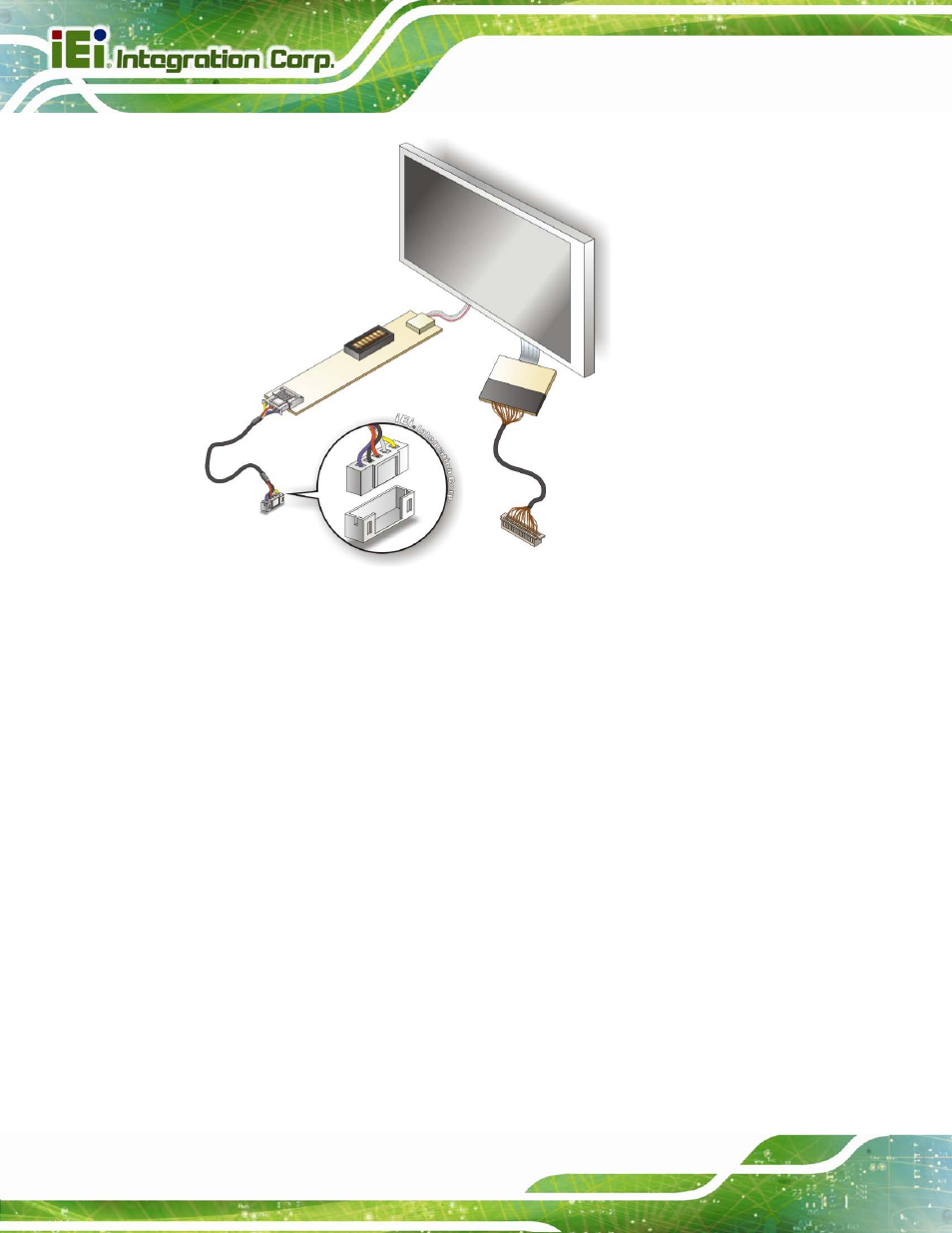

Figure 4-14: Backlight Inverter Connection

4.8.4 SATA Drive Connection

The NANO-QM871 is shipped with two SATA drive cables. To connect the SATA drive to

the connector, please follow the steps below.

Step 1:

Locate the SATA connector and the SATA power connector. The locations of

the connectors are shown in Chapter 3.

Step 2:

Insert the cable connector. Insert the cable connector into the on-board SATA

drive connector and the SATA power connector. See Figure 4-15.
