NANO-QM871 EPIC SBC

Page 42

3.2.26 USB 2.0 Connector

CN Label:

USB1

CN Type:

8-pin header

CN Location:

See Figure 3-27

CN Pinouts:

See Table 3-28

The USB header can connect to two USB devices.

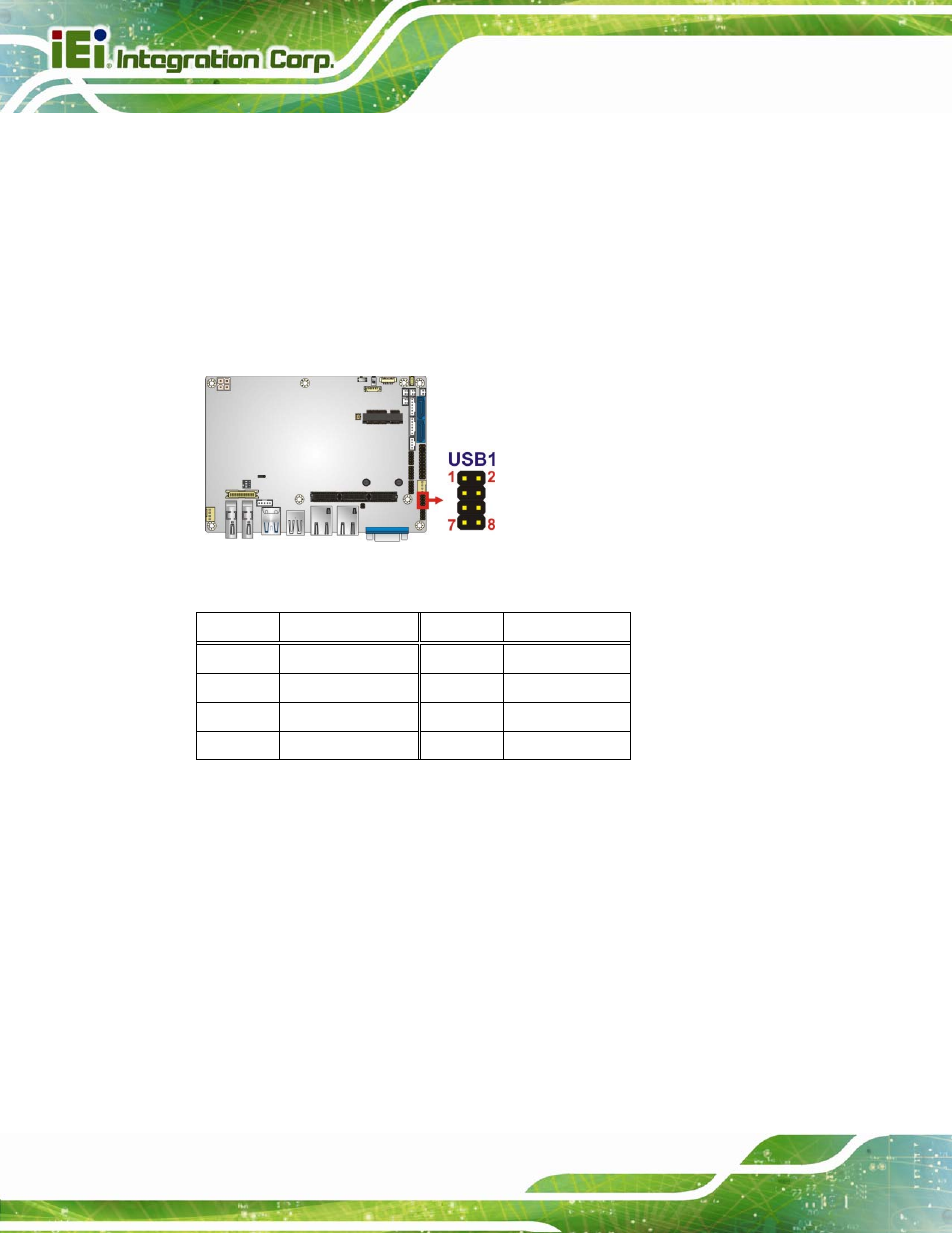

Figure 3-27: USB Connector Locations

Pin Description Pin Description

1 VCC

2 GND

3 DATA-

4 DATA+

5 DATA+

6 DATA-

7 GND

8 VCC

Table 3-28: USB Port Connector Pinouts
