NANO-QM871 EPIC SBC
Page 2
1.1 Introduction

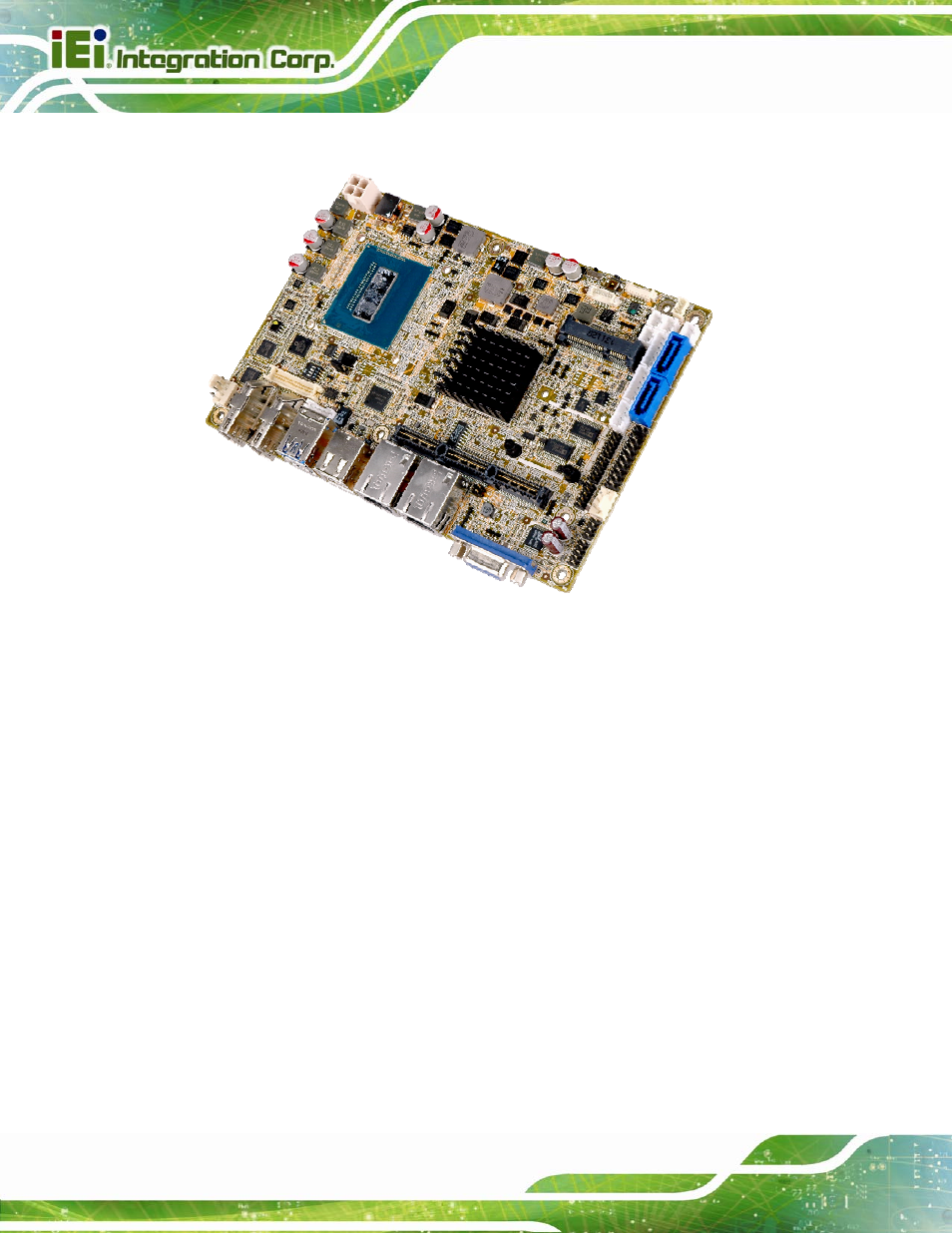

Figure 1-1: NANO-QM871
The NANO-QM871 is an EPIC SBC with a 4
th
generation 22nm Intel® mobile Core™
i7/i5/i3 or Celeron® processor and Intel® QM87 Express Chipset. Storage on the board is
handled by two SATA 6Gb/s ports and one PCIe Mini socket for connecting a hard drive,
optical drive or SSD.
The board has three types of graphics outputs that support triple independent display. A
VGA output connects to a VGA monitor. One LVDS connector supports 18/24-bit
dual-channel display. Two HDMI connectors support HDMI 1.4a specification.
Other slots and connectors include PCIe/104 Type 2 slot, RS-232 ports, RS-422/485 port,
Gigabit Ethernet, USB 3.0 ports, USB 2.0 ports, TPM, SMBus and digital I/O.
