NANO-QM871 EPIC SBC

Page 41

3.2.25 TPM Connector

CN Label:

TPM1

CN Type:

20-pin header

CN Location:

See Figure 3-26

CN Pinouts:

See Table 3-27

The Trusted Platform Module (TPM) connector secures the system on bootup.

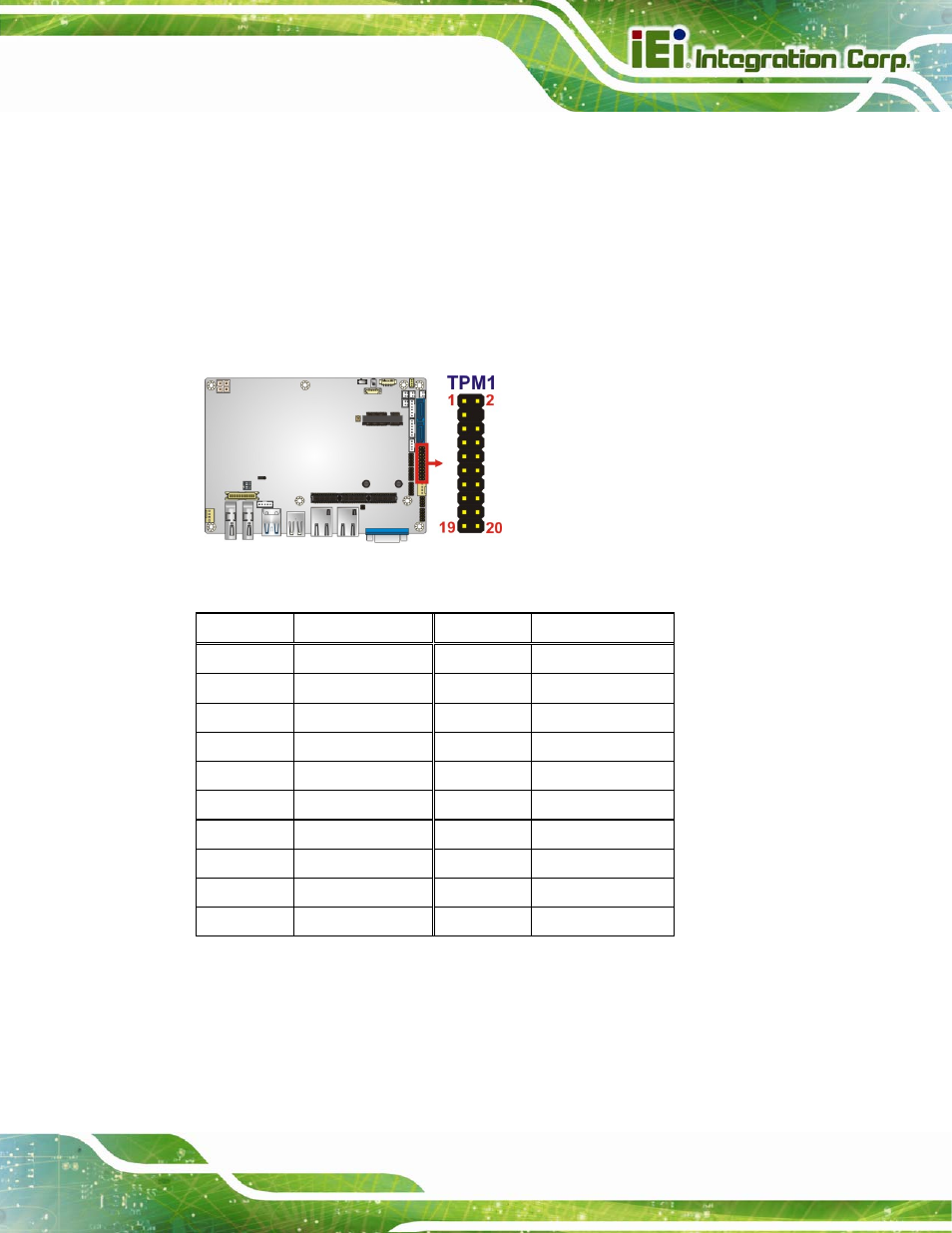

Figure 3-26: TPM Connector Location

Pin Description

1 LCLK

2 GND

3 LFRAME#

4 KEY

5 LRERST#

6 +5V

7 LAD3

8 LAD2

9 +3V

LAD1

11 LAD0

12 GND

13 SCL

14 SDA

15 SB3V

16 SERIRQ

17 GND

18 GLKRUN#

19 LPCPD# 20 LDRQ#

Table 3-27: TPM Connector Pinouts
