NANO-QM871 EPIC SBC

Page 39

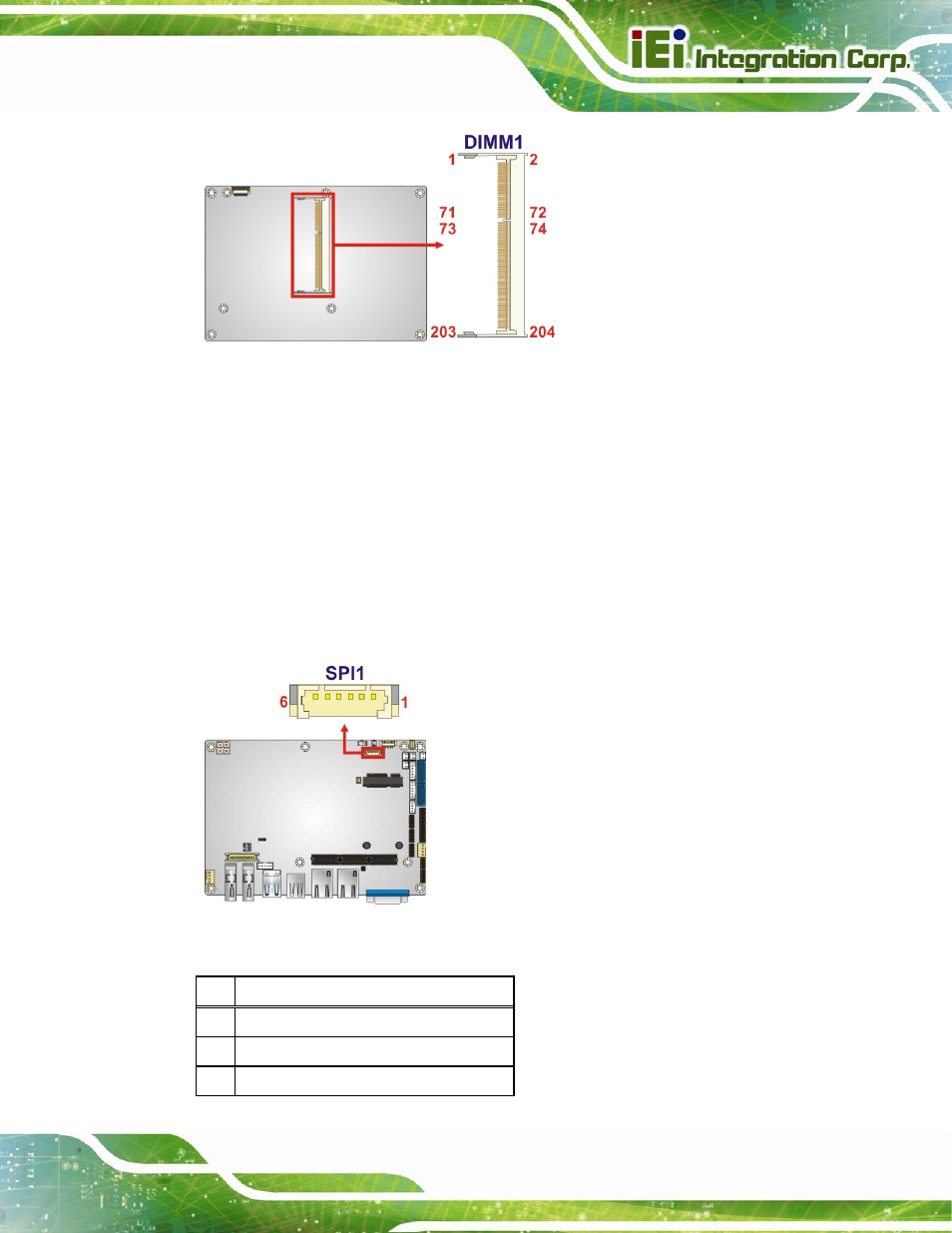

Figure 3-23: SO-DIMM Connector Locations

3.2.23 SPI Flash Connector

CN Label:

SPI1

CN Type:

6-pin wafer

CN Location:

See Figure 3-24

CN Pinouts:

See Table 3-25

The 6-pin SPI Flash connector is used to flash the BIOS.

Figure 3-24: SPI Flash Connector Location

Pin Description

1 +V3.3M_SPI_CON

2 SPI_CS#0_CN

3 SPI_SO_SW
