NANO-QM871 EPIC SBC
Page 57

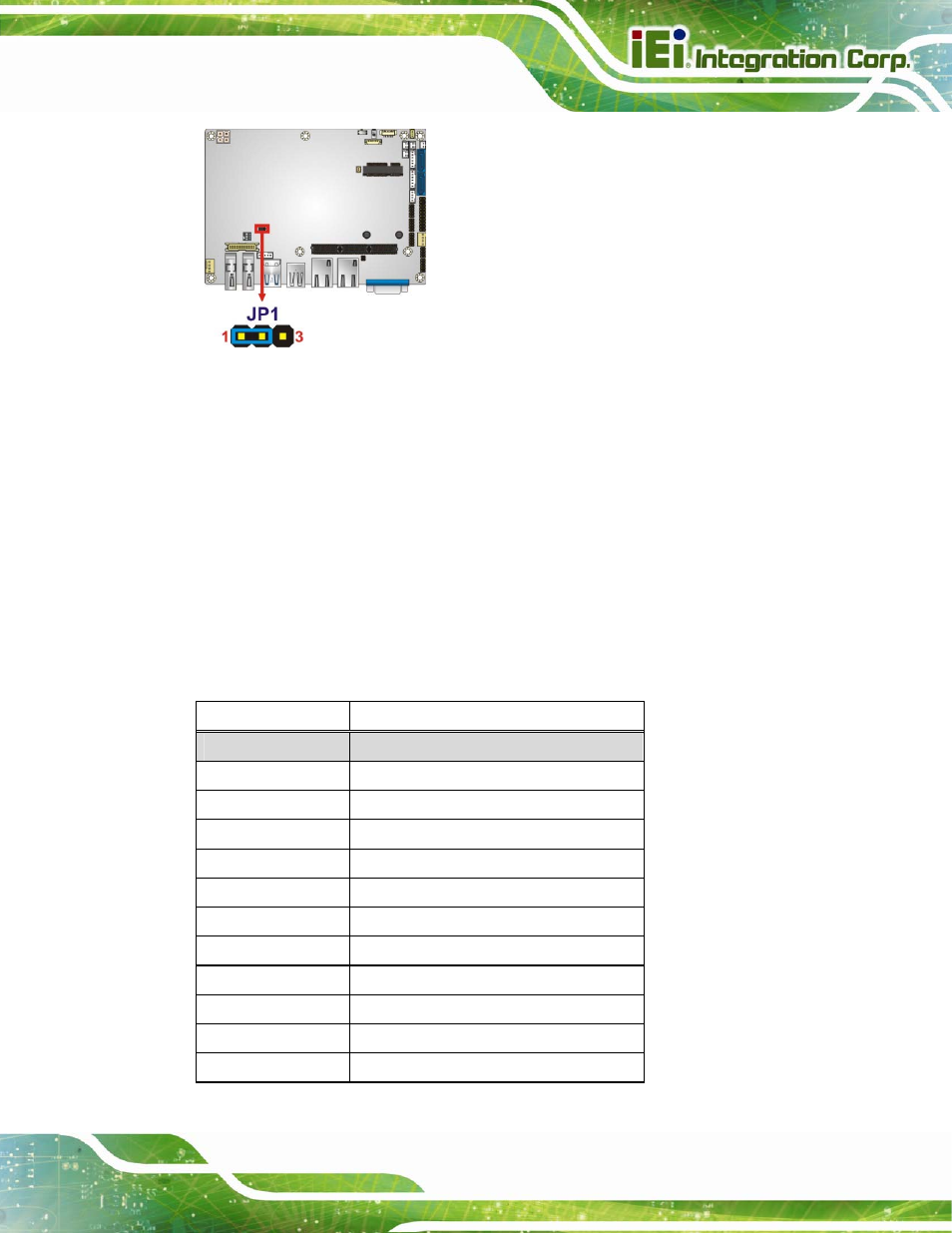

Figure 4-8: LVDS Voltage Selection Jumper Location
4.6.4 LVDS Resolution Selection
Jumper Label: SW1
Jumper Type: DIP switch
Jumper Settings: See Table 4-3
Jumper Location: See Figure 4-9
Selects the resolution of the LCD panel connected to the LVDS connector.
* ON=0, OFF=1; S= Single, D=Dual
SW1 (4-3-2-1) Description
0000 800x600 18bit S (default)
0001 1024x768 18bit S
0010 1024x768 24bit S
0011 1280x768 18bit S
0100 1280x800 18bit S
0101 1280x960 18bit S
0110 1280x1024 24bit D
0111 1366x768 18bit S
1000 1366x768 24bit S
1001 1440x960 24bit D
1010 1400x1050 24bit D
1011 1600x900 24bit D
