NANO-QM871 EPIC SBC

Page 24

3.2.8 LAN Active LED Connector

CN Label:

LAN_ACT_LED1

CN Type:

4-pin header

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The connector is for active LED connection of the external LAN ports.

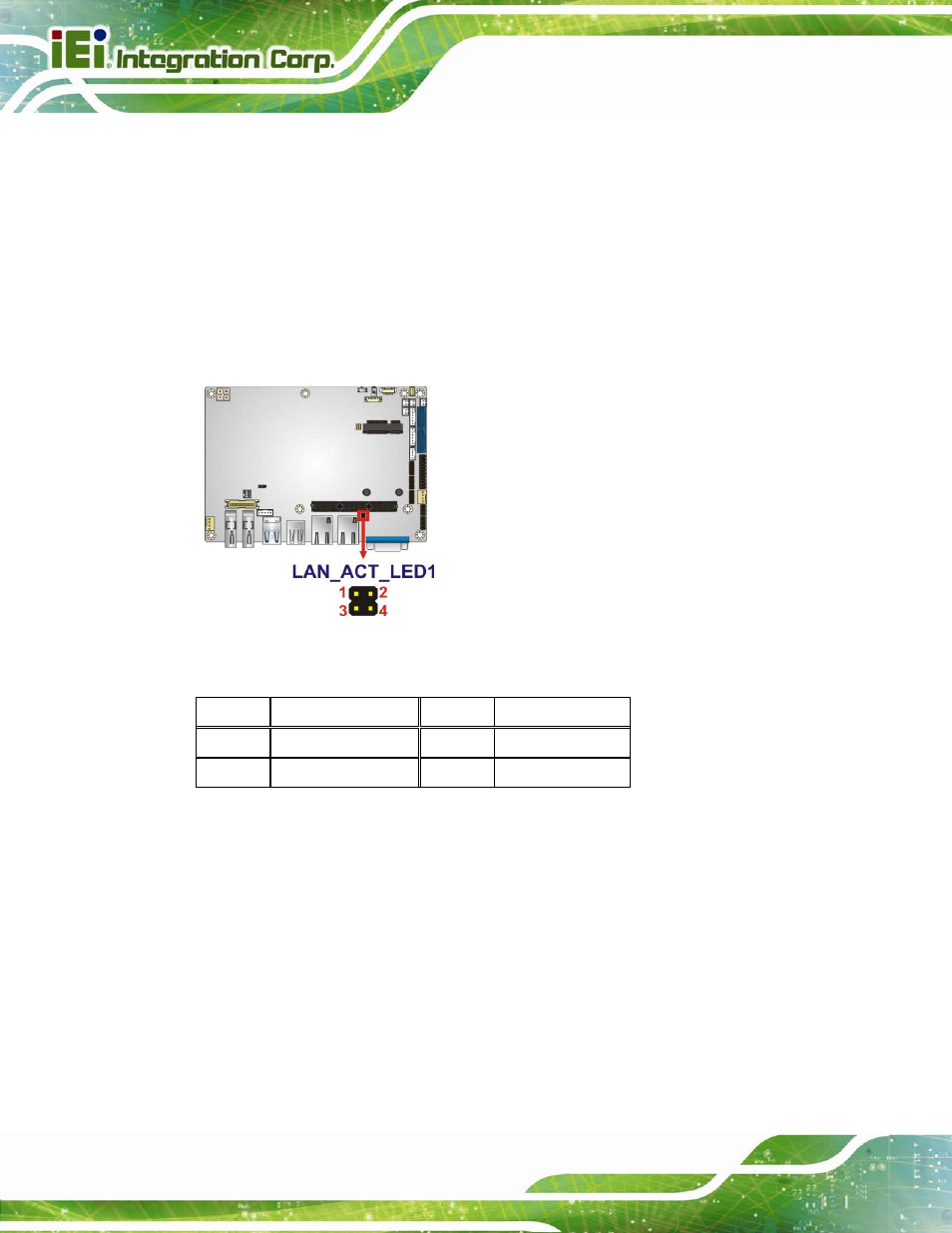

Figure 3-9: LAN Active LED Connector Location

Pin Description

1 LAN1_LINK_ACT-

2 V_3P3_LAN

3 LAN2_LINK_ACT-

4 +3.3A

Table 3-10: LAN Active LED Connector Pinouts

3.2.9 LVDS Connector

CN Label:

LVDS1

CN Type:

30-pin crimp

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The LVDS connector is for an LCD panel connected to the board.
