NANO-QM871 EPIC SBC

Page 36

Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9

connector are listed below.

RS-422 Pinouts

RS-485 Pinouts

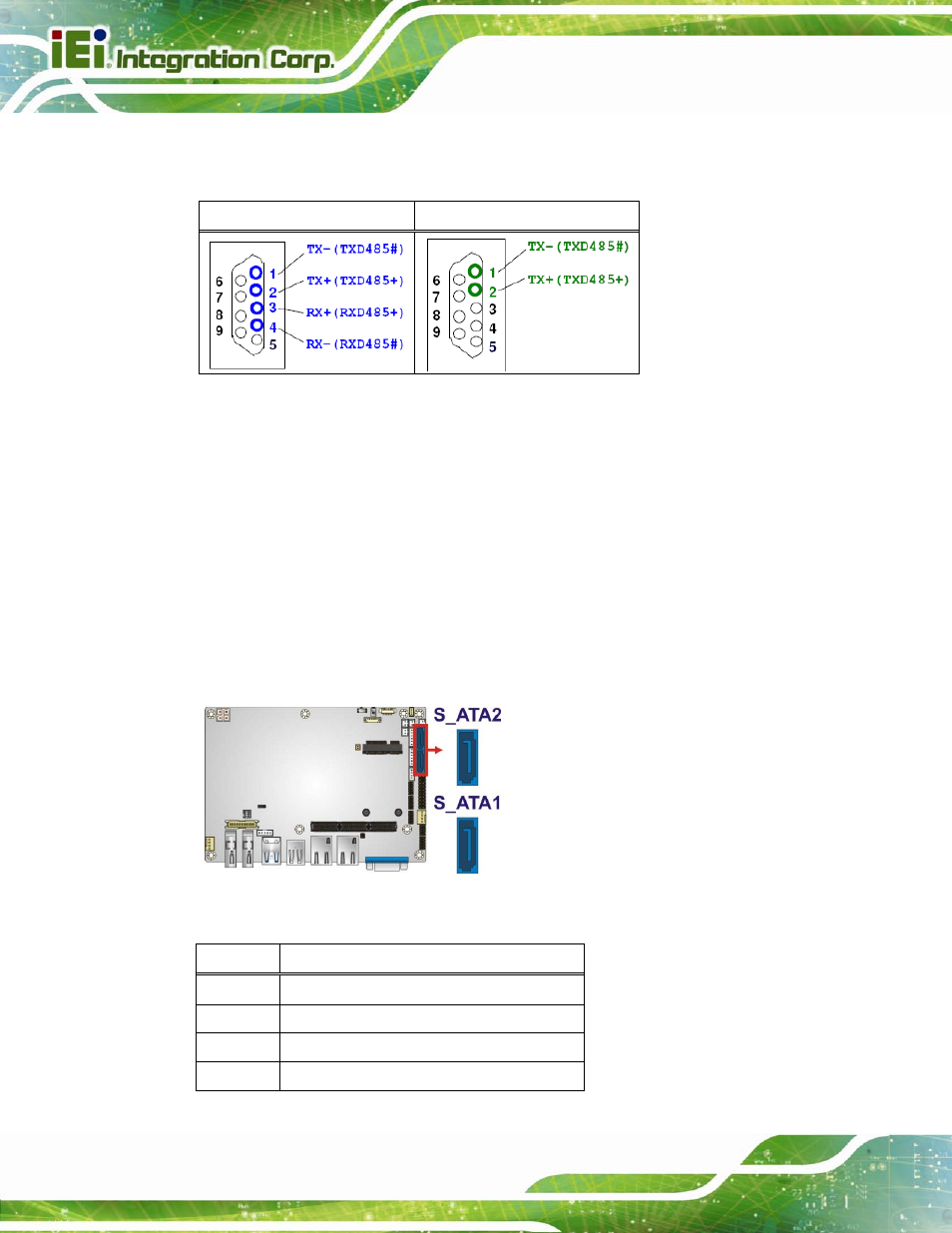

Table 3-21: DB-9 RS-422/485 Pinouts

3.2.19 SATA 6Gb/s Drive Connectors

CN Label:

S_ATA1, S_ATA2

CN Type:

7-pin SATA drive connectors

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-22

The SATA connectors connect to SATA hard drives or optical drives with data transfer

speeds as high as 6Gb/s.

Figure 3-20: SATA 6Gb/s Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND
