NANO-QM871 EPIC SBC

Page 37

Pin Description

5 RX-

6 RX+

7 GND

Table 3-22: SATA 6Gb/s Drive Connector Pinouts

3.2.20 SATA Power Connectors

CN Label:

SATA_PWR1, SATA_PWR2

CN Type:

2-pin wafer

CN Location:

See Figure 3-21

CN Pinouts:

See Table 3-23

Use the SATA Power Connector to connect to SATA device power connections.

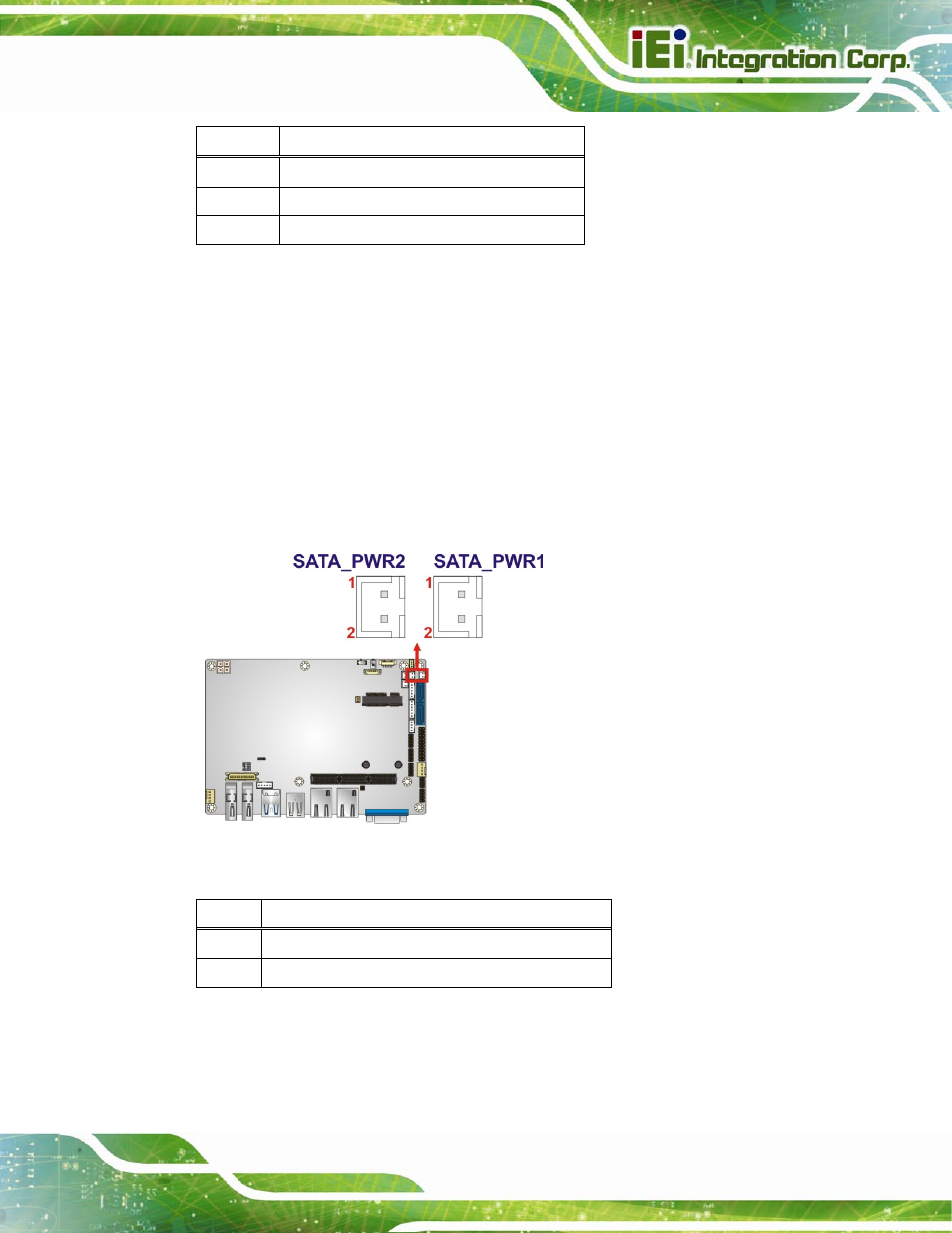

Figure 3-21: SATA Power Connector Locations

Pin Description

1 +V5S

2 GND

Table 3-23: SATA Power Connector Pinouts
