NANO-QM871 EPIC SBC
Page 26
The backlight inverter connector provides power to the LCD panel connected to the board.

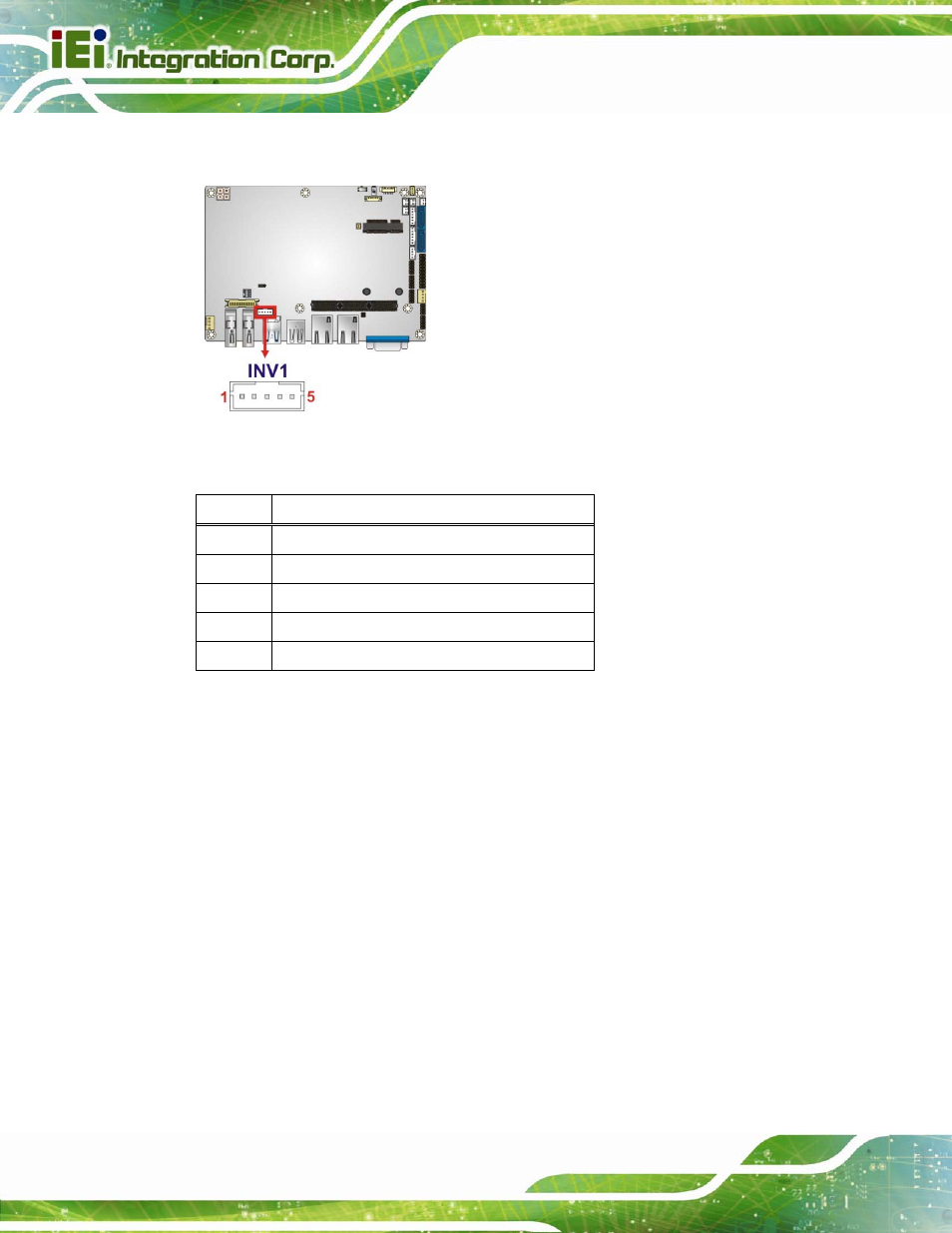

Figure 3-11: LVDS Backlight Inverter Connector
Pin Description
1 BRIGHTNESS
2 GROUND
3 +12VS_LCD_BKL
4 GROUND
5 BACKLIGHT ENABLE
Table 3-12: Backlight Inverter Connector Pinouts
3.2.11 PCIe Mini Card Slot
CN Label: M-SATA1
CN Type: PCIe Mini card slot
CN Location: See Figure 3-12
CN Pinouts: See Table 3-13
The PCIe Mini card slot enables a PCIe Mini card expansion module to be connected to
the board. Cards supported include among others PCIe Mini cards and mSATA cards.
