NANO-QM871 EPIC SBC

Page 50

4.3 Cooling Kit Installation

An IEI CPU cooling kit can be purchased separately (See Chapter 2). The cooling kit is

comprised of a CPU heat sink and a cooling fan.

WARNING:

Do not wipe off (accidentally or otherwise) the pre-sprayed layer of

thermal paste on the bottom of the heat sink. The thermal paste

between the CPU and the heat sink is important for optimum heat

dissipation.

To install the cooling kit, please follow the steps below.

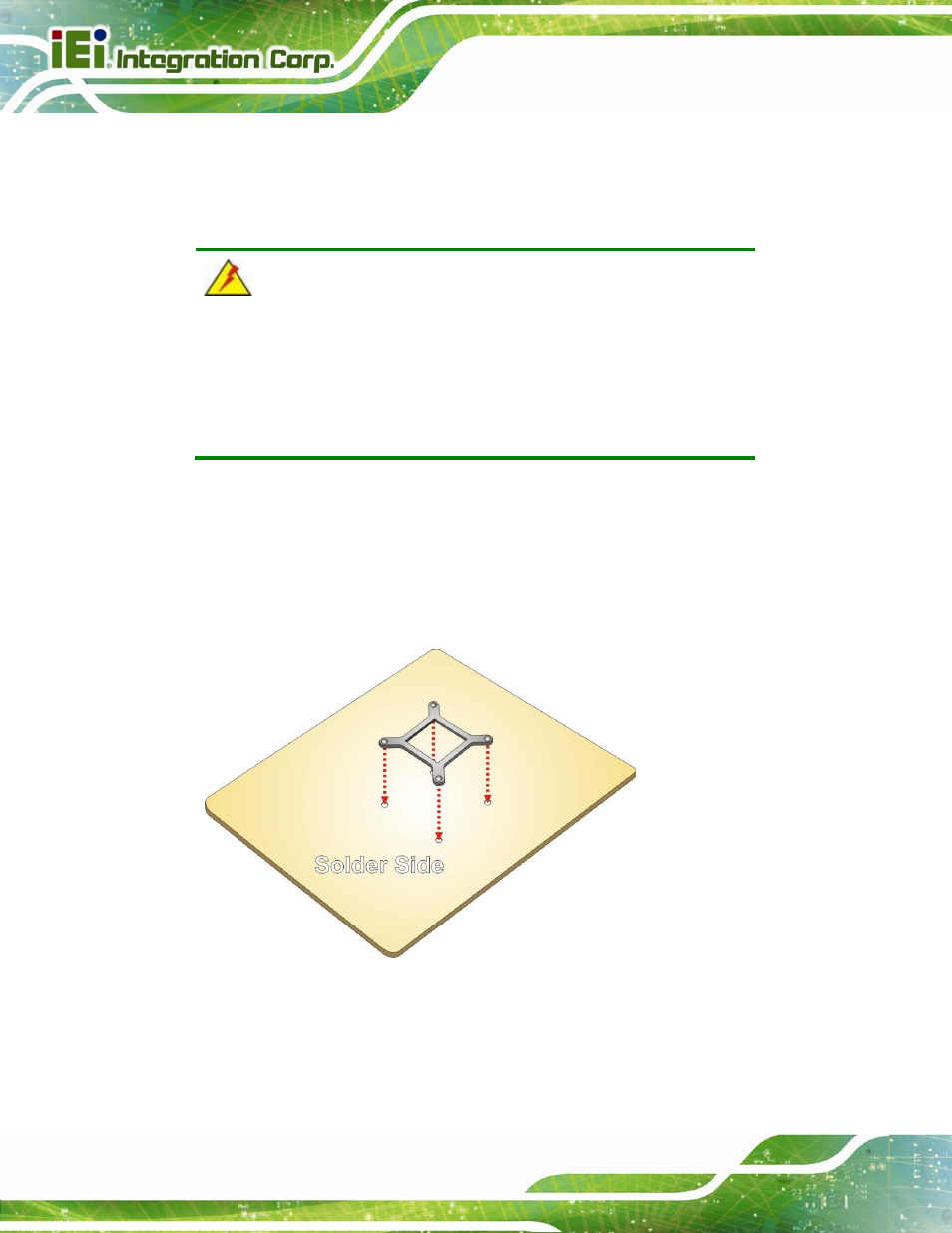

Step 1:

Install the support bracket. Remove the tape from the support bracket. From

the solder side of the board, align the support bracket to the holes on board and

stick in place.

Figure 4-1: Install Support Bracket
