NANO-QM871 EPIC SBC

Page 67

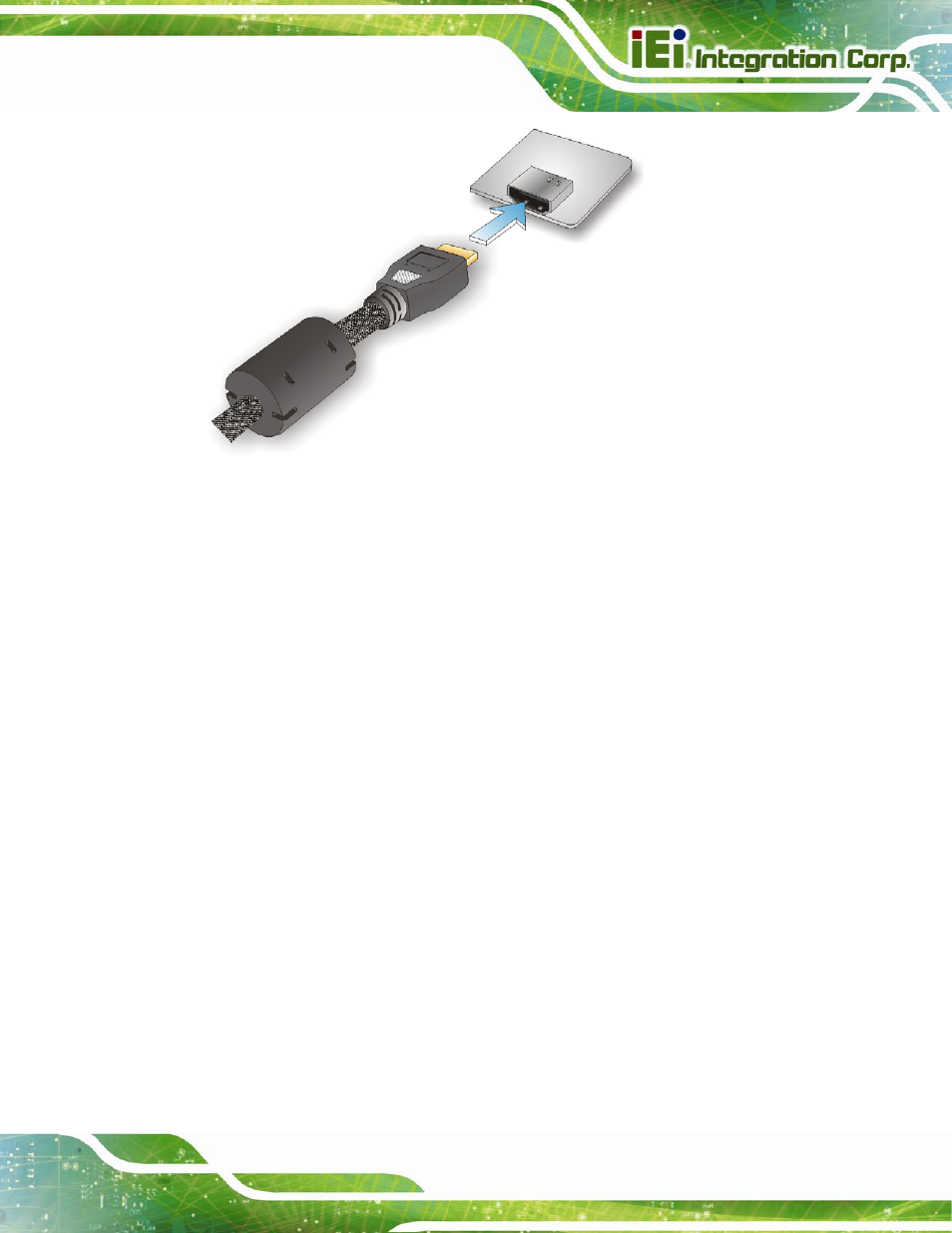

Figure 4-17: HDMI Connection

Step 3:

Insert the HDMI connector. Gently insert the HDMI connector. The connector

should engage with a gentle push. If the connector does not insert easily, check

again that the connector is aligned correctly, and that the connector is being

inserted with the right way up.

Step 0:

4.9.2 LAN Connection

The RJ-45 connectors enable connection to an external network. To connect a LAN cable

with an RJ-45 connector, please follow the instructions below.

Step 1:

Locate the RJ-45 connectors. The locations of the RJ-45 connectors are

shown in Chapter 3.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the NANO-QM871. See Figure 4-18.
