Step 2:

Properly orient the cooling kit. The CPU fan cable must not interfere with the

fan or other moving parts. Make sure the cable can be routed away from the

moving parts.

Step 3:

Properly align the cooling kit. Line up the four screws with the screw holes on

the support bracket below the board (Figure 4-2).

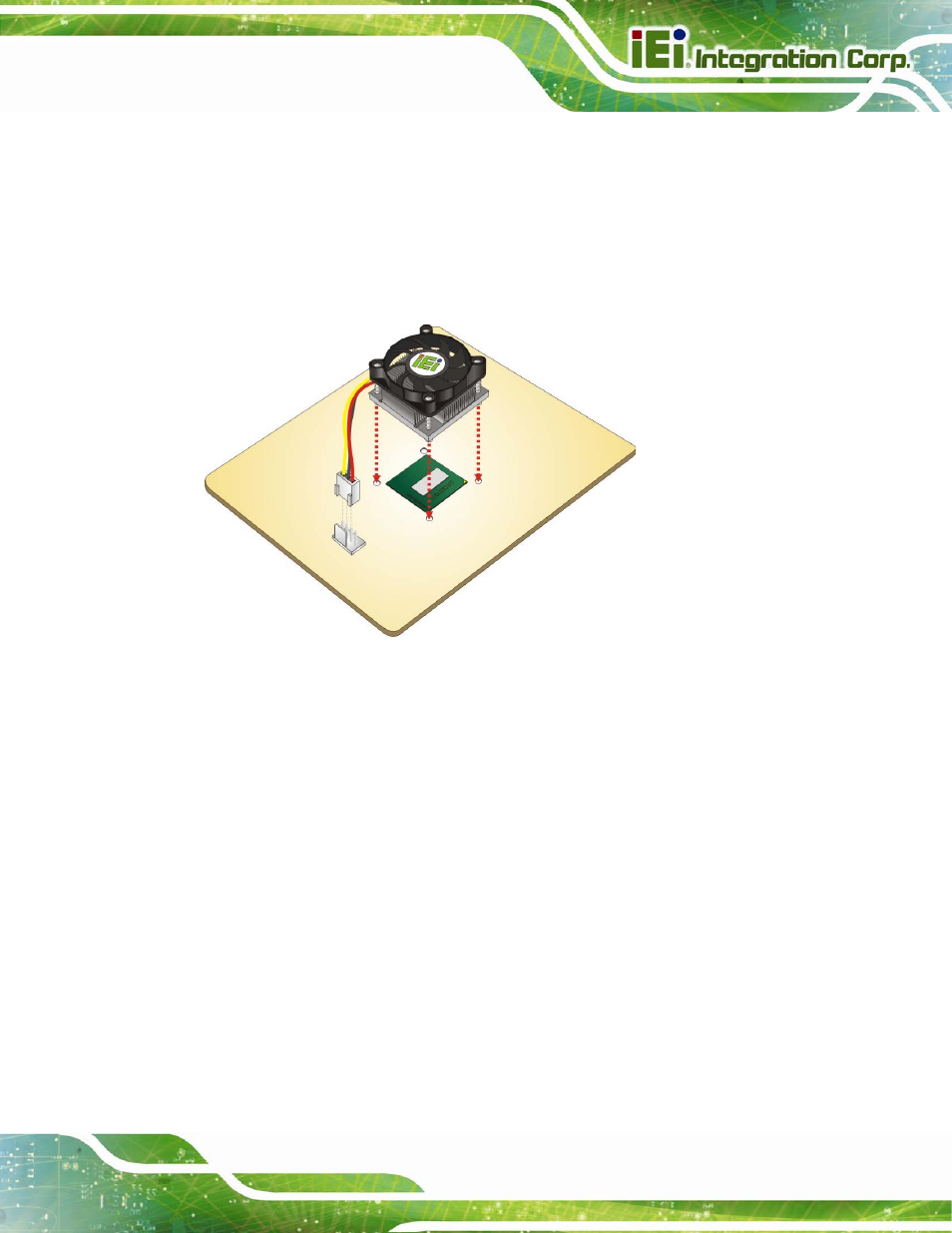

Figure 4-2: Align the Cooling Kit

Step 4:

Place the cooling kit onto the CPU. Push down the fan with some pressure to

secure the cooling kit with the support bracket. See Figure 4-3.

Step 5:

Tighten the screws. Use a screwdriver to tighten the four screws. In a diagonal

pattern, tighten each screw a few turns then move to the next one, until they are

all secured. Do not overtighten the screws. See Figure 4-3.

Step 6:

Connect the fan cable. Connect the cooling kit fan cable to the fan connector

on the board. Carefully route the cable away from heat generating chips and fan

blades.
