NANO-QM871 EPIC SBC
Page 44
LED Description LED Description
A on: linked
blinking: data is being sent/received
B off: 10 Mb/s
green: 100 Mb/s
orange: 1000 Mb/s
Table 3-30: Connector LEDs
3.3.2 HDMI Connectors
CN Label: HDMI1, HDMI2
CN Type: HDMI connector
CN Location: See Figure 3-28
CN Pinouts: See Table 3-31 and Figure 3-30
The HDMI connector connects to a display device with HDMI interface.
Pin Description Pin Description
1 HDMI_DATA2+ 11 GND
2 GND 12 HDMI_CLK#
3 HDMI_DATA2#- 13 N/C
4 HDMI_DATA1+ 14 N/C
5 GND 15 HDMI_SCL
6 HDMI_DATA1#- 16 HDMI_SDA
7 HDMI_DATA0+ 17 GND
8 GND 18 +5VCC
9 HDMI_DATA0#- 19 HDMI_HPD
10 HDMI_CLK+
Table 3-31: HDMI Connector Pinouts

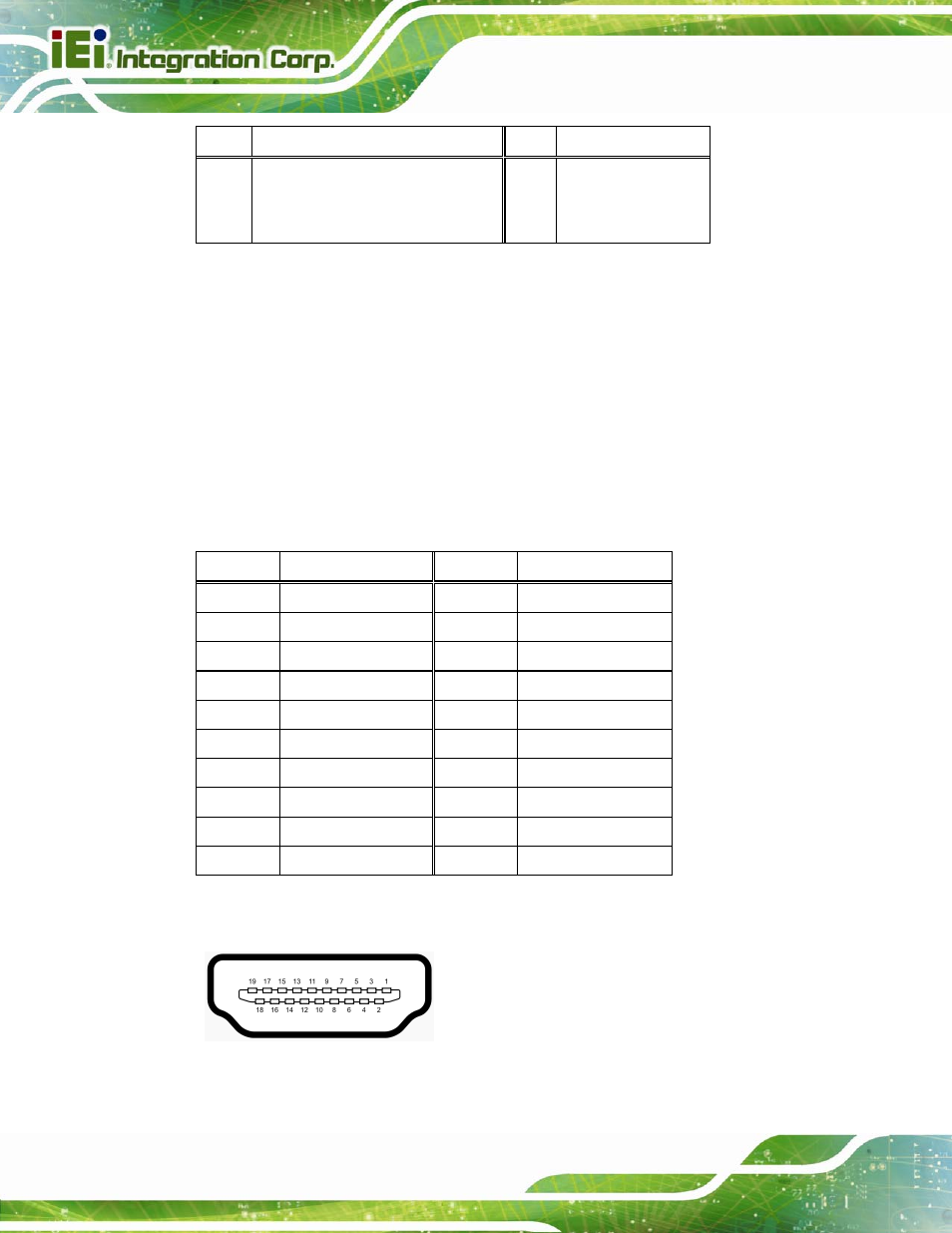

Figure 3-30: HDMI Connector
