NANO-QM871 EPIC SBC

Page 33

The LED connector connects to an HDD indicator LED and a power LED on the system

chassis to inform the user about HDD activity and the power on/off status of the system.

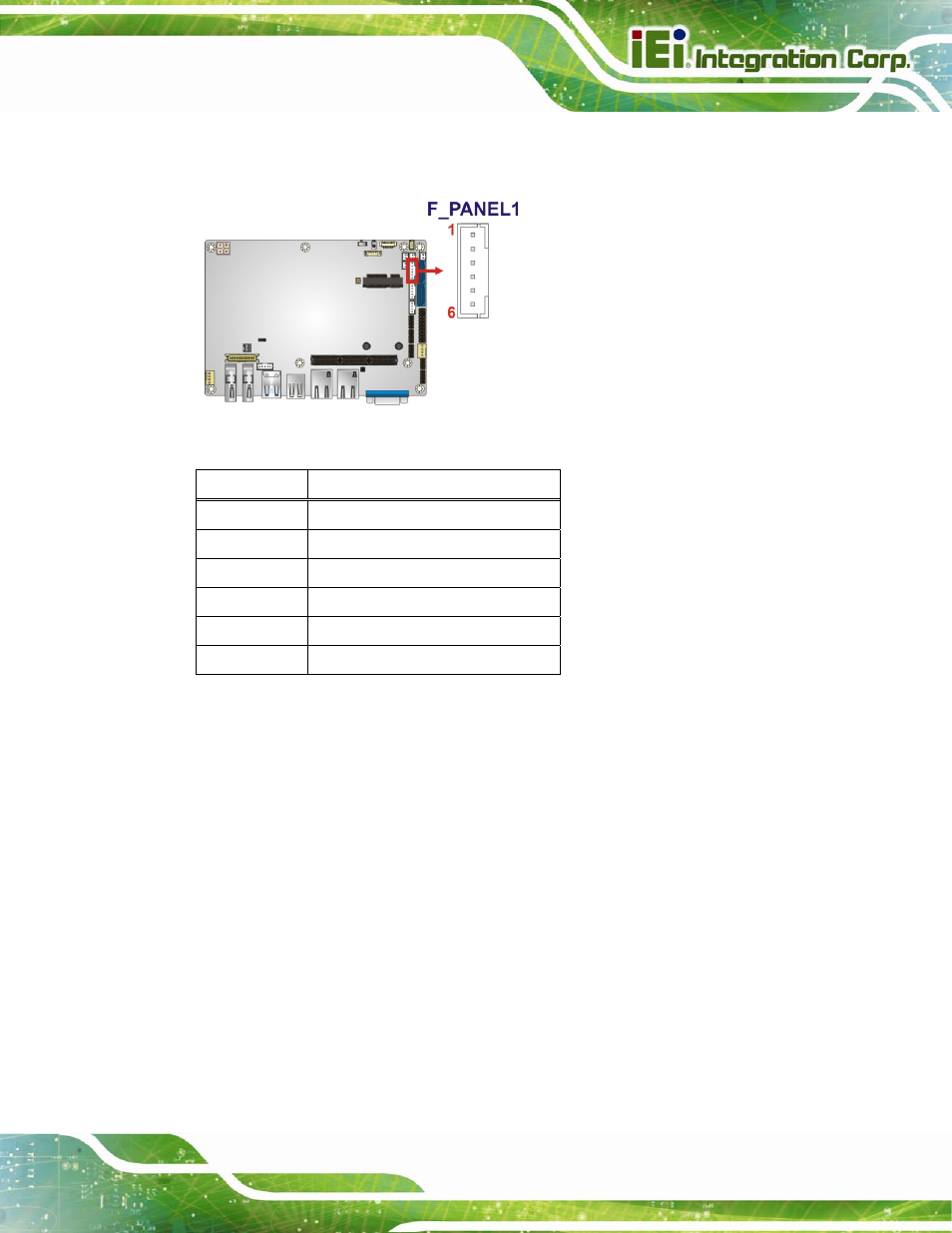

Figure 3-16: Power LED and HDD LED Connector Location

Pin Description

1

+5V

2 GND

3

PWR_LED+

4

PWR_LED-

5

HDD_LED+

6

HDD_LED-

Table 3-17: Power LED and HDD LED Connector Pinouts

3.2.16 Reset Button Connector

CN Label:

RST_BTN1

CN Type:

2-pin wafer

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-18

The reset button connector is connected to a reset switch on the system chassis to enable

users to reboot the system when the system is turned on.
