Figure 4-23: vga connector – IEI Integration NANO-945GSE2 User Manual

Page 85

background image

NANO-945GSE2

Page 71

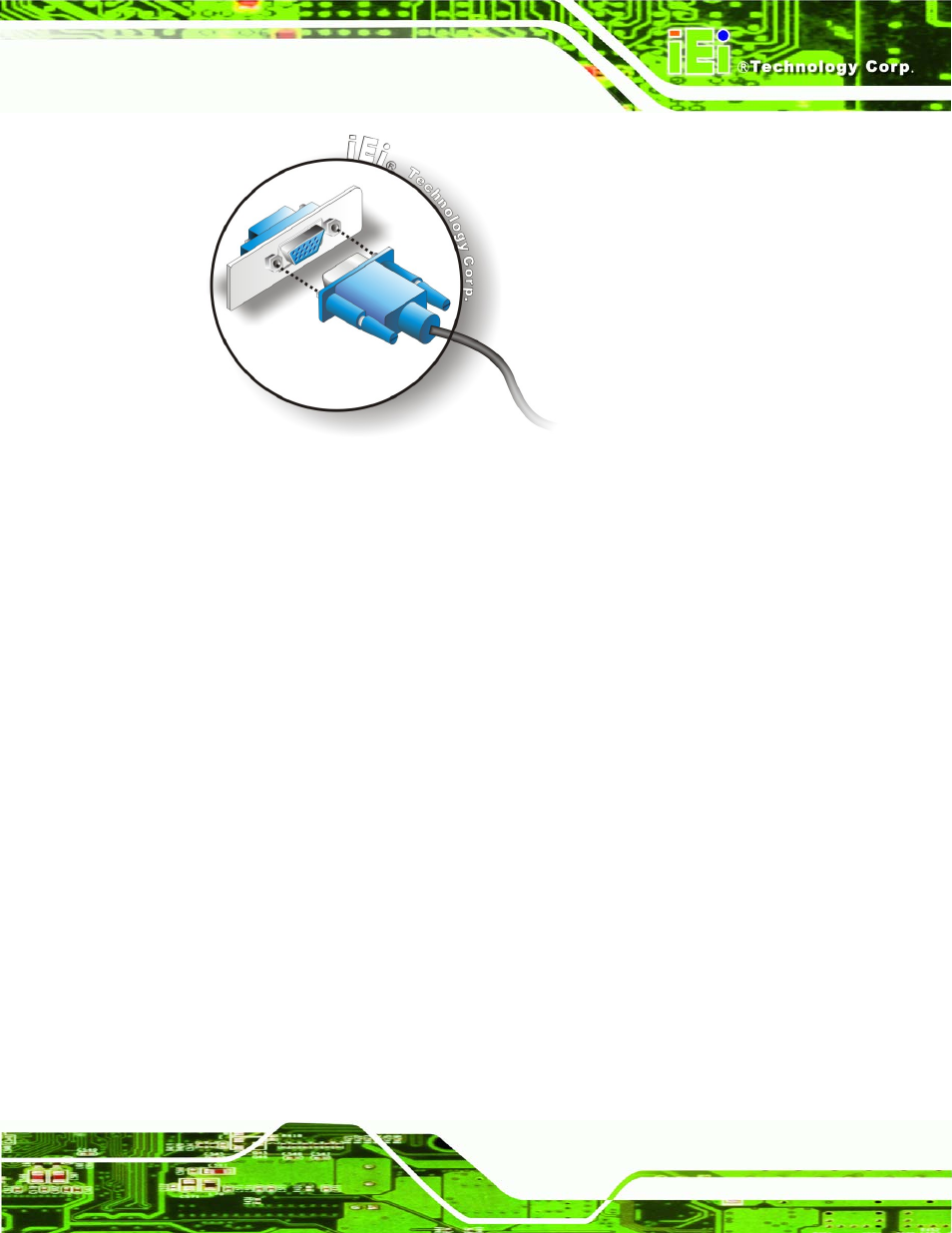

Figure 4-23: VGA Connector

Step 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.
