Page 61

NANO-945GSE2

Page 47

Step 5:

Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into

place and secure the SO-DIMM in the socket.

Step 0:

4.4 CF Card Installation

NOTE:

The NANO-945GSE2 can support both CF Type I and II cards.

To install a CF card onto the NANO-945GSE2, please follow the steps below:

Step 1:

Locate the CF card socket. Place the NANO-945GSE2 on an anti-static pad

with the solder side facing up. Locate the CF card socket.

Step 2:

Align the CF card. Make sure the CF card is properly aligned with the CF

socket.

Step 3:

Insert the CF card. Gently insert the CF card into the socket making sure the

socket pins are properly inserted into the socket. See Figure 4-2.

Step 0:

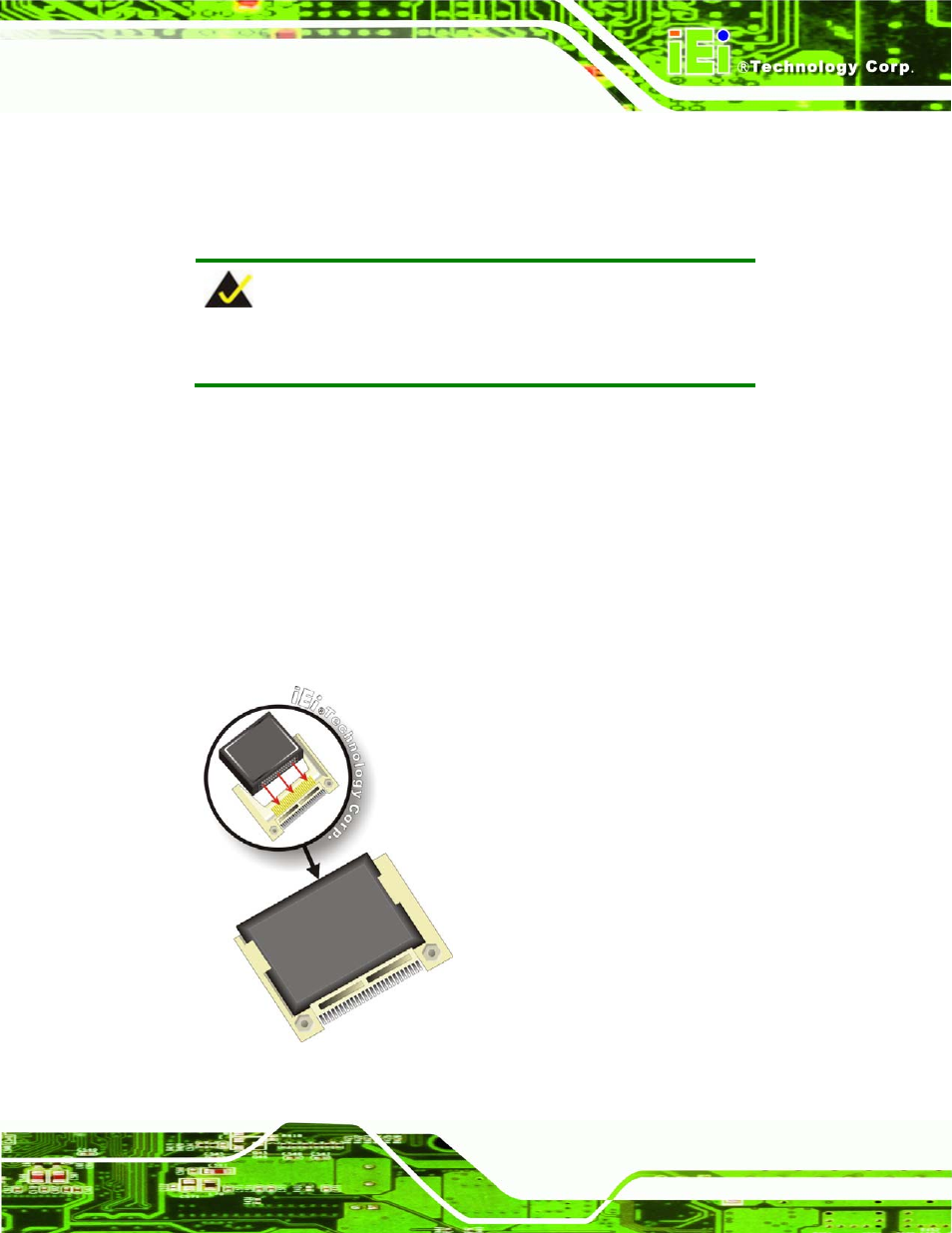

Figure 4-2: CF Card Installation
