NANO-945GSE2
Page 46
4.3 SO-DIMM Installation
WARNING:
Using incorrectly specified SO-DIMM may cause permanently damage
the NANO-945GSE2. Please make sure the purchased SO-DIMM
complies with the memory specifications of the NANO-945GSE2.
SO-DIMM specifications compliant with the NANO-945GSE2 are listed
in Chapter 2.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-1.

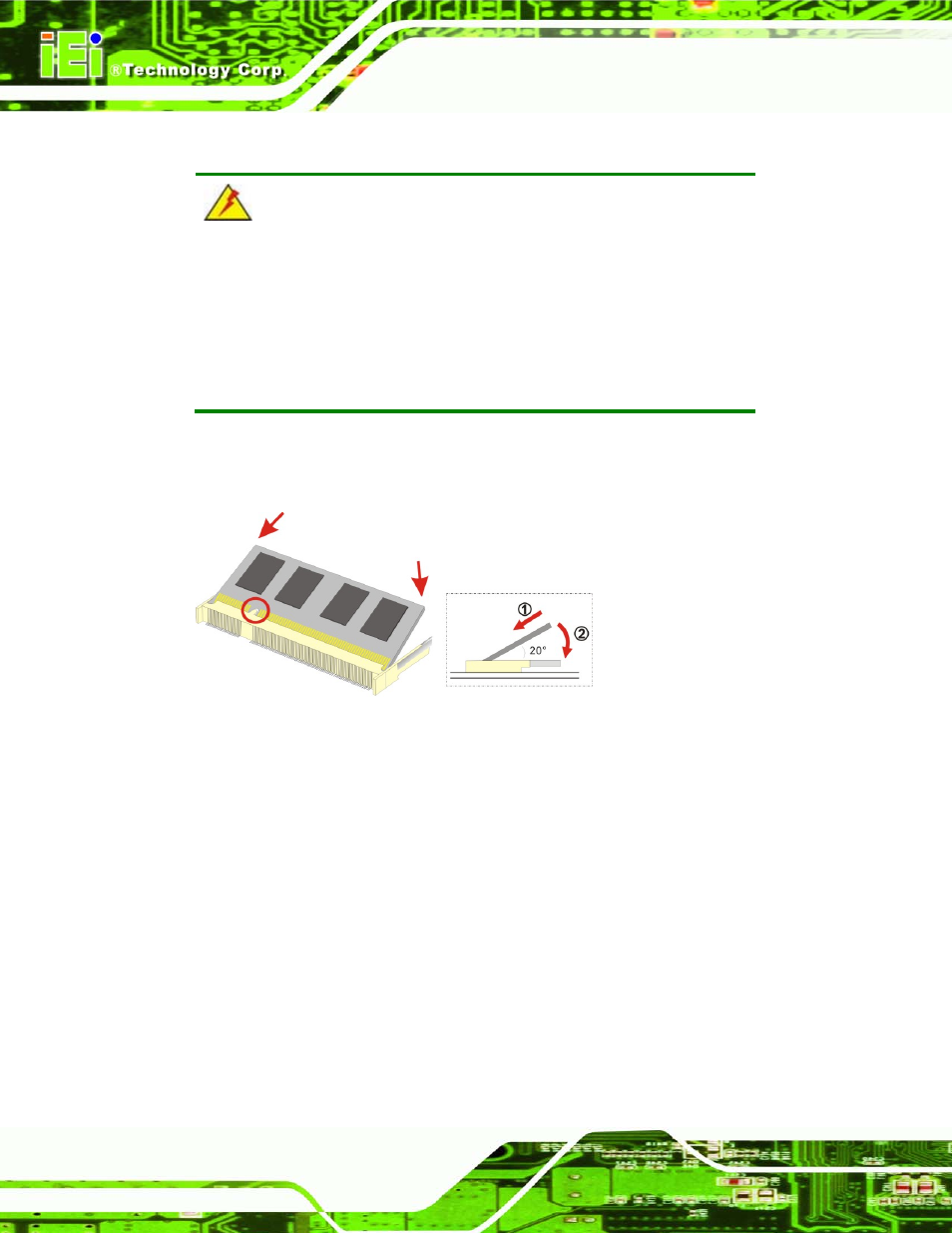

Figure 4-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the NANO-945GSE2 on an anti-static pad
with the solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket.
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 4-1)
Step 4: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket
out and push the rear of the SO-DIMM down. (See Figure 4-1)
