NANO-945GSE2
Page 30
3.3.14 PC/104 Connector
CN Label: J6
CN Type: 104-pin PC/104 slot
CN Location: See
6
Figure 3-16
CN Pinouts: See Table 3-16 and Table 3-17
The PC/104 slot enables a PC/104 compatible expansion module to be connected to the
board. The PC/104 slot together with the PCI-104 slot form a PC/104 Plus slot which
enable a PC/104 Plus compatible expansion module to be connected to the board.

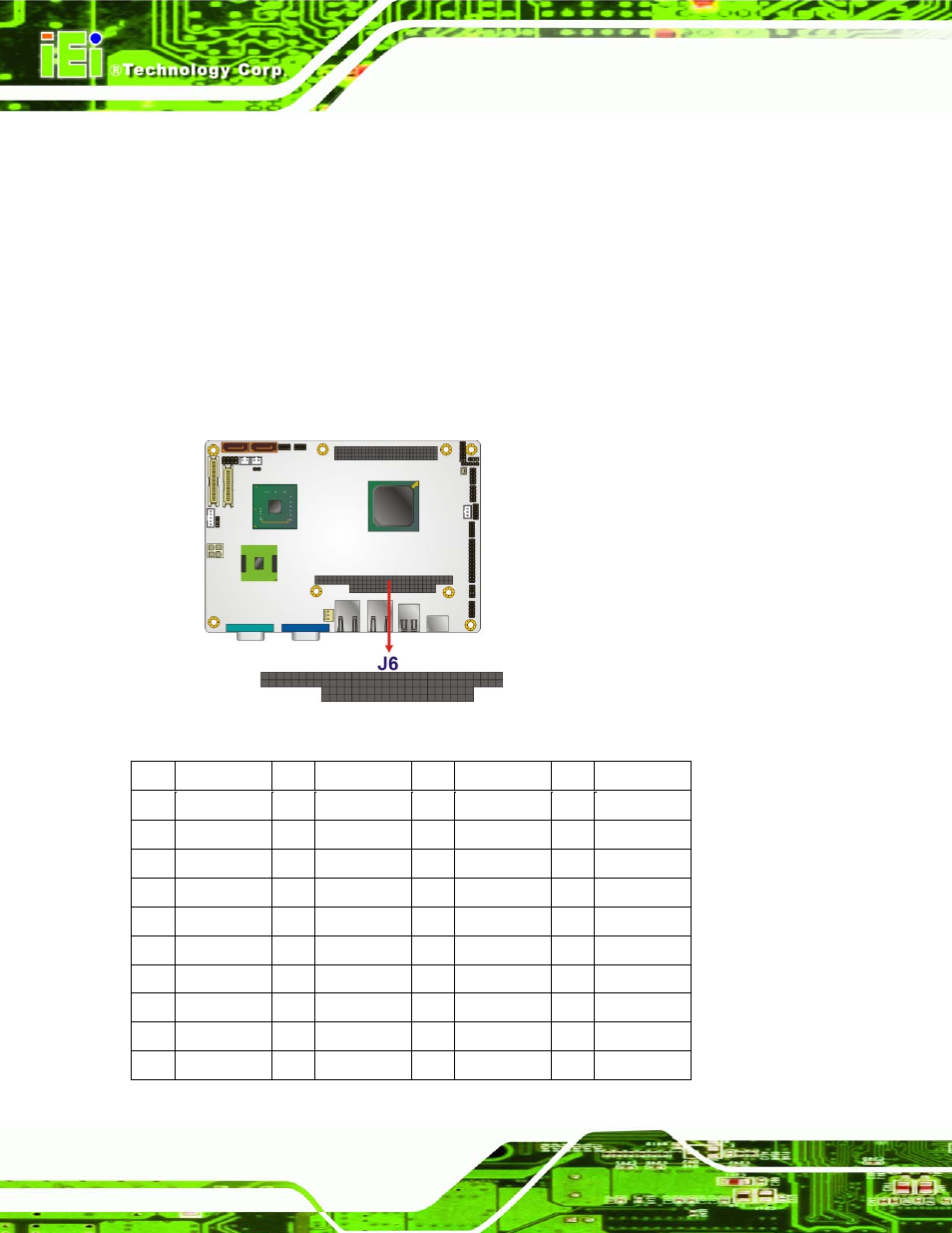

Figure 3-16: PC/104 Connector
PIN Description PIN Description PIN Description PIN Description
A1 -IOCHK A17 SA14 B1 GND B17 -DACK1
A2 SD7 A18 SA13 B2 RSTDRV B18 DRQ1
A3 SD6 A19 SA12 B3 VCC B19 -REFRESH
A4 SD5 A20 SA11 B4 IRQ9 B20 BCLK
A5 SD4 A21 SA10 B5 NC B21 IRQ7
A6 SD3 A22 SA9 B6 DRQ2 B22 IRQ6
A7 SD2 A23 SA8 B7 NC B23 IRQ5
A8 SD1 A24 SA7 B8 -NOWS B24 IRQ4
A9 SD0 A25 SA6 B9 +12V B25 IRQ3
A10 IOCHRDY A26 SA5 B10 GND B26 -DACK2
