NANO-945GSE2
Page 131
Step 13: After the driver installation process is complete, a confirmation screen appears
(
845H
Figure 6-34).

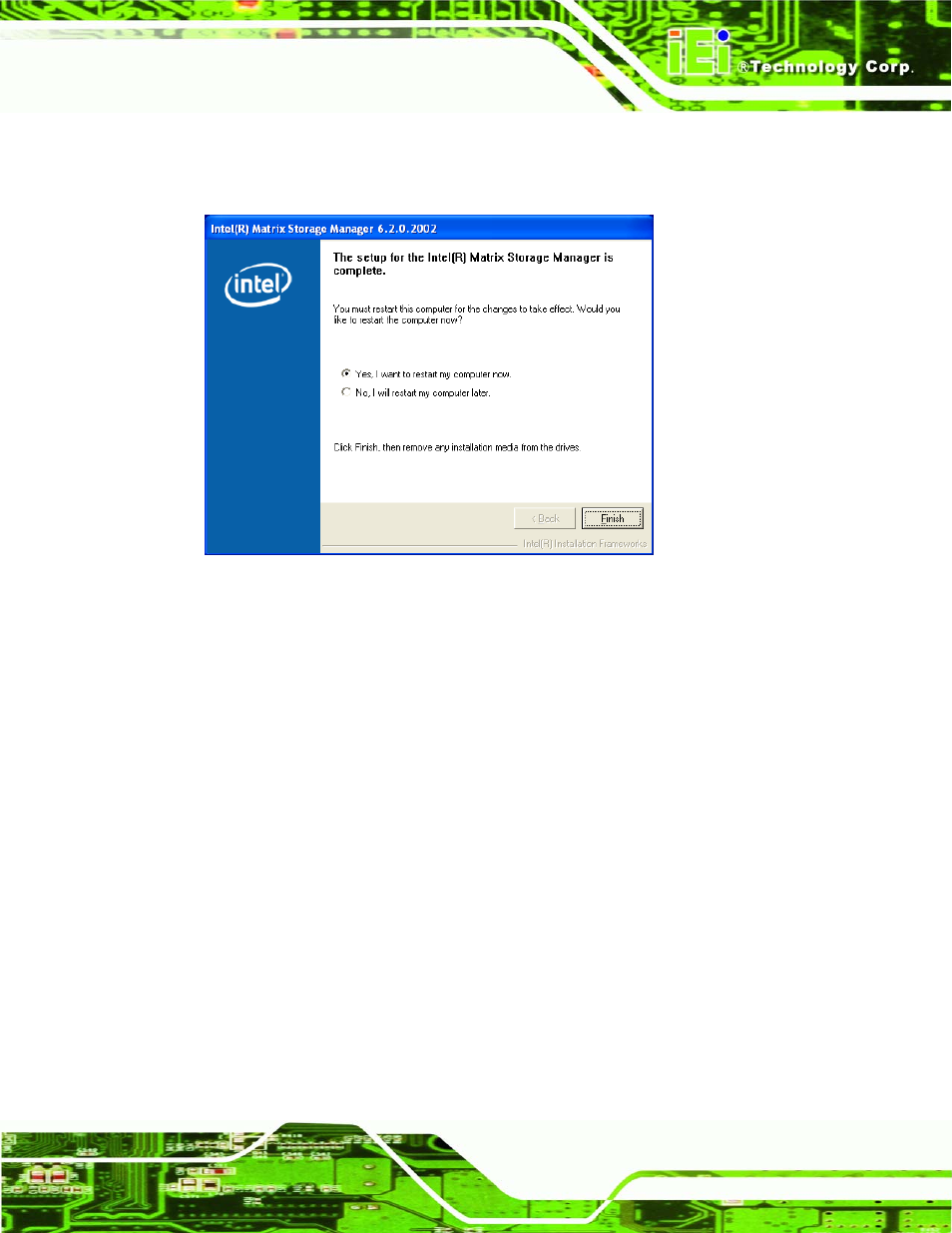

Figure 6-34: Matrix Storage Manager Setup Complete
Step 14: The confirmation screen offers the option of restarting the computer now or later.
For the settings to take effect, the computer must be restarted. Click F INISH to
restart the computer. Step 0:
6.8 iSMM Installation
The iSMM (Intelligent System Management Module) allows hardware functions to be
monitored from within the operating system. The iSMM can be set to sound an alarm
when voltages, temperatures or fan speeds rise above or fall below the set limits.
Step 1: Access the driver list shown in
846H
Figure 6-3. (See Section
847H
6.2)
Step 2: Click “6-iSMM”
Step 3: The iSMM directory appears. (
848H
Figure 6-35)
