NANO-945GSE2
Page 36

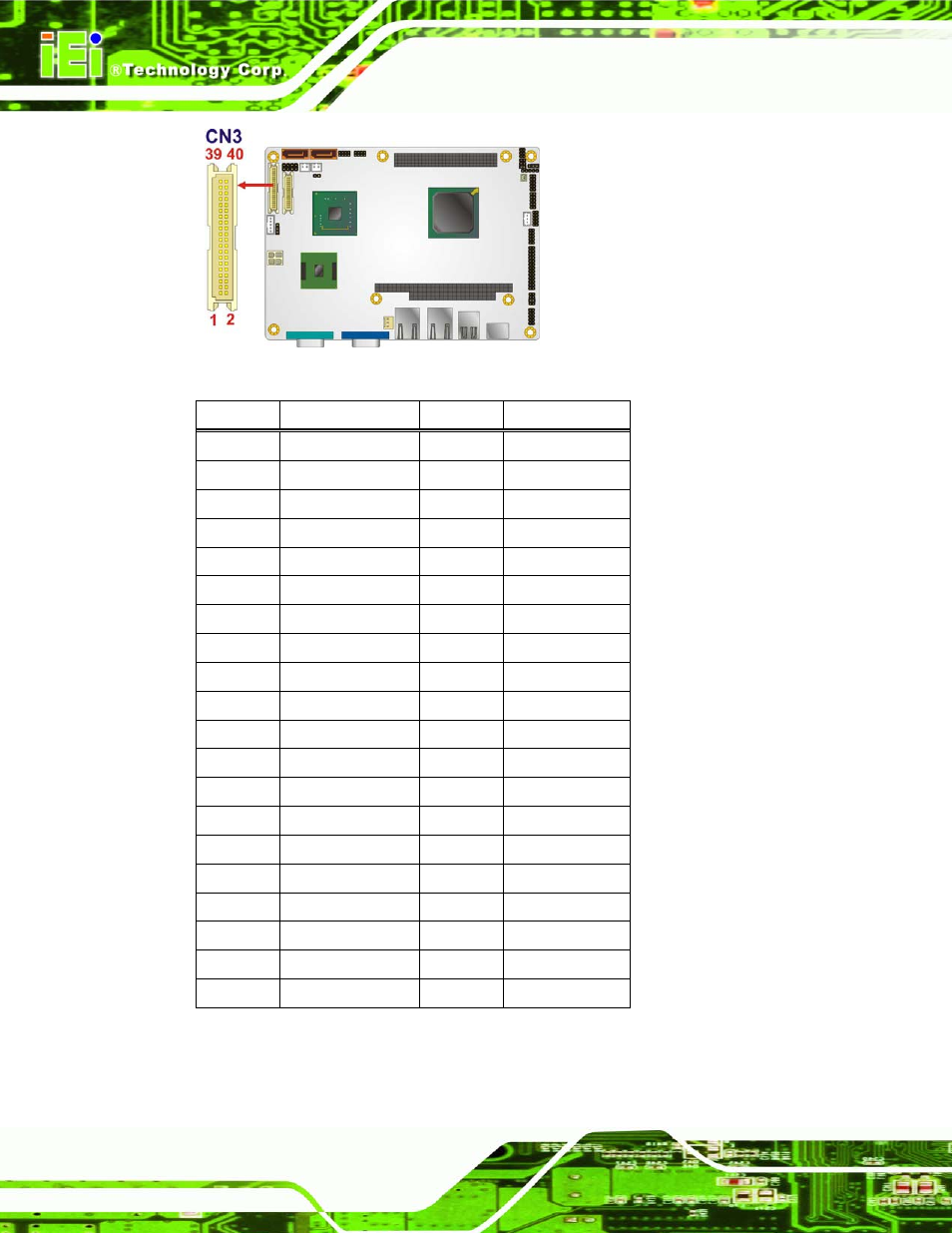

Figure 3-21: LCD TTL Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC_LCD 2 VCC_LCD
3 GND 4 GND
5 VCC_LCD 6 VCC_LCD
7 N/C 8 GND
9 TFT_B0 10 TFT_B1
11 TFT_B2 12 TFT_B3
13 TFT_B4 14 TFT_B5
15 TFT_B6 16 TFT_B7
17 TFT_G0 18 TFT_G1
19 TFT_G2 20 TFT_G3
21 TFT_G4 22 TFT_G5
23 TFT_G6 24 TFT_G7
25 TFT_R0 26 TFT_R1
26 TFT_R2 28 TFT_R3
29 TFT_R4 30 TFT_R5
31 TFT_R6 32 TFT_R7
33 GND 34 GND
35 FPCLK 36 T_VSYNC
37 TFT_EN 38 T_HSYNC
39 N/C 40 L_VDDEN
Table 3-22: TTL LCD Port Connector Pinouts
