NANO-945GSE2

Page 28

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

12 PAPER

EMPTY

25 GROUND

13 PRINTER

SELECT 26 NC

Table 3-14: Parallel Port Connector Pinouts

3.3.13 PCI-104 Slot

CN Label:

J4

CN Type:

120-pin PCI-104 slot

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-15

The PCI-104 slot enables a PCI-104 compatible expansion module to be connected to the

board. The PCI-104 slot together with the PC/104 slot form a PC/104 Plus slot which

enable a PC/104 Plus compatible expansion module to be connected to the board.

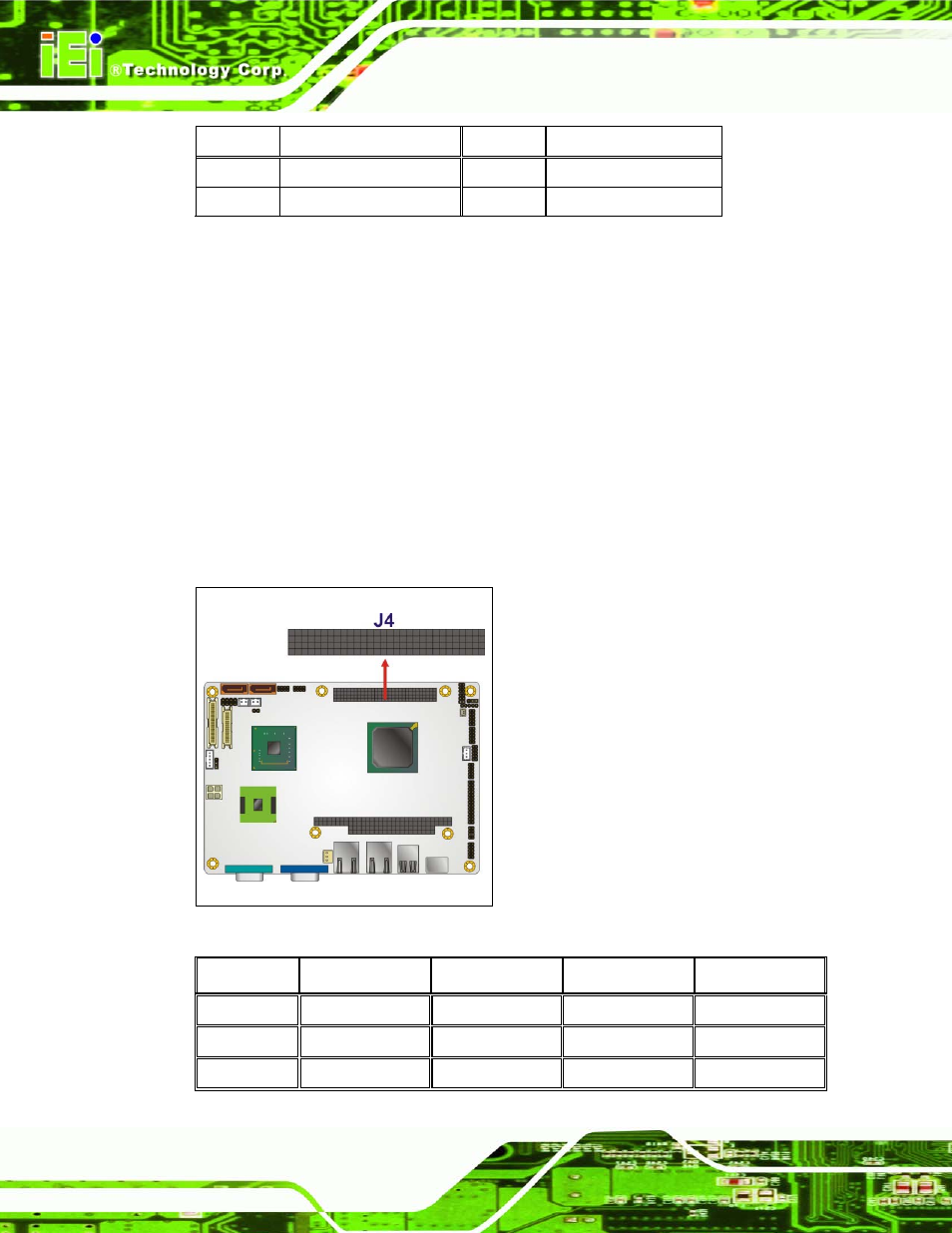

Figure 3-15: PCI-104 Slot Location

Pin No.

Column A

Column B

Column C

Column D

1 GND/5V

TBD1 5V

AD00

2 VI/O1 AD02 AD01 +5V

3 AD05 GND AD04 AD03
