1.2.3 Data Flow

6

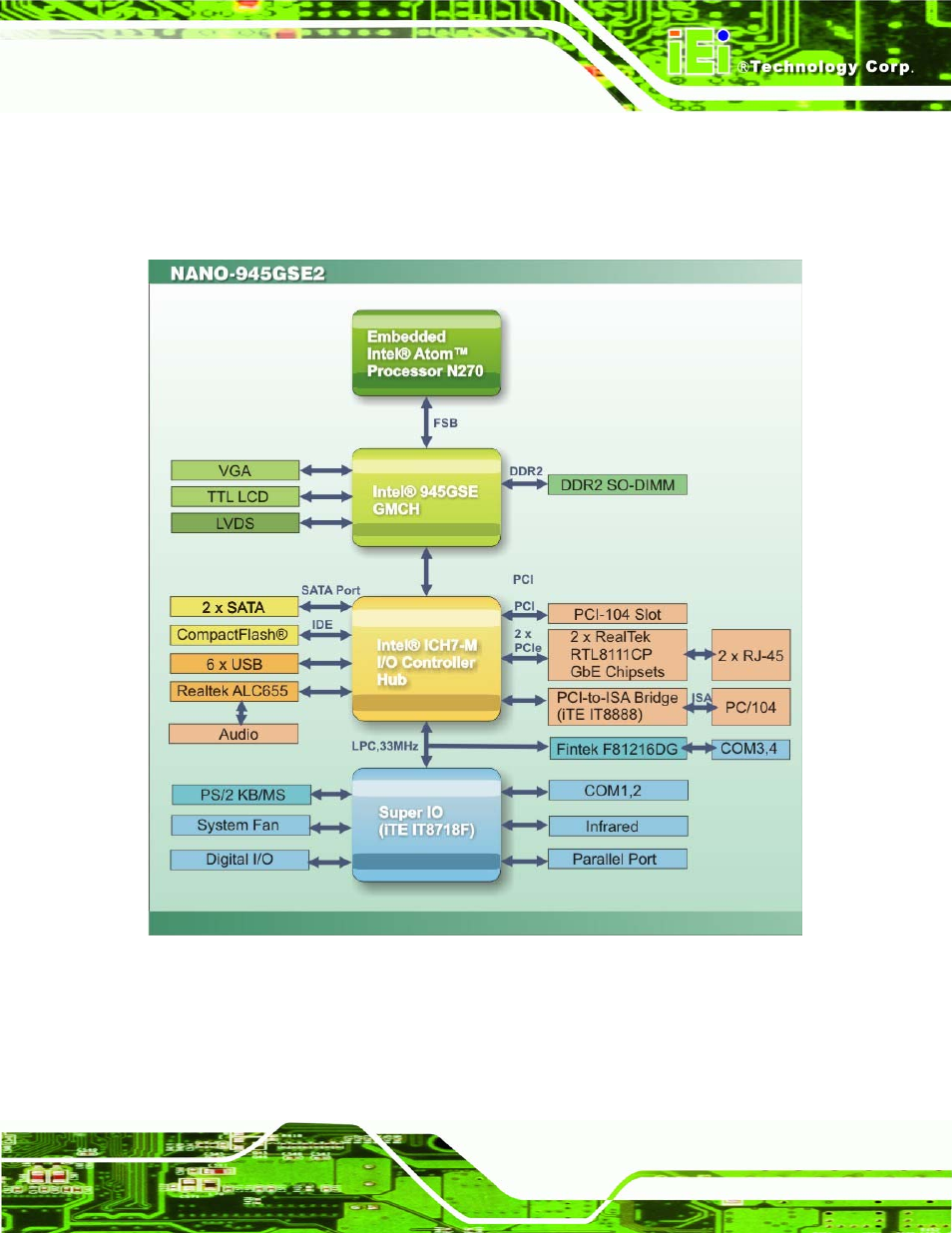

Figure 1-5 shows the data flow between the two on-board chipsets and other components

installed on the motherboard and described in the following sections of this chapter.

Figure 1-5: Data Flow Block Diagram
