NANO-945GSE2

Page 24

Power

button

Reset

Power

LED

HDD

LED

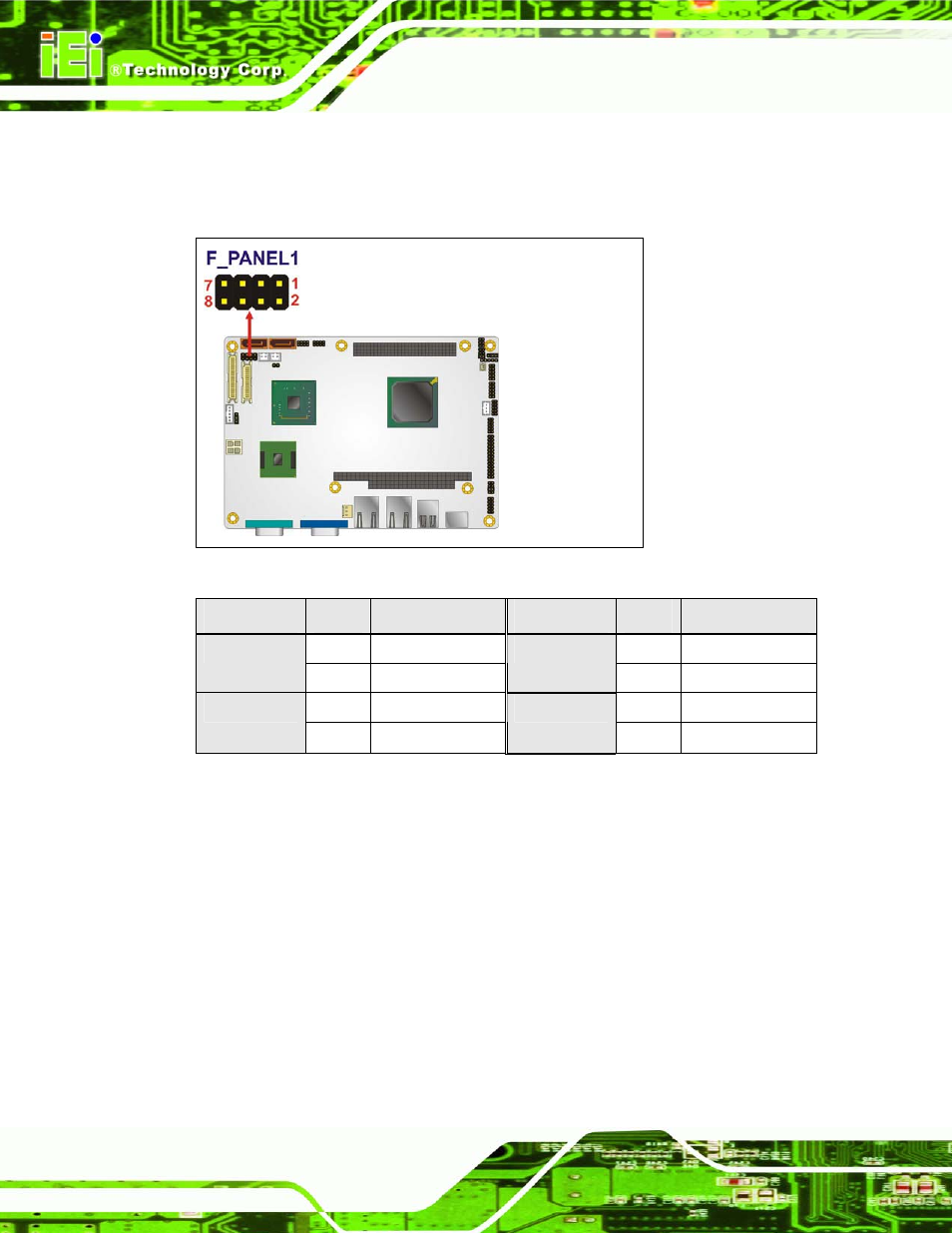

Figure 3-11: Front Panel Connector Pinout Locations (8-pin)

FUNCTION

PIN

DESCRIPTION

FUNCTION

PIN

DESCRIPTION

1 PWR_BTN

2 VCC5

Power Button

3 GND

Power LED

4 GND

5 HDD_LED+

6 SYSRST-

HDD LED

7 HDD_LED-

Reset

8 GND

Table 3-11: Front Panel Connector Pinouts (8-pin)

3.3.10 Infrared Interface Connector (5-pin)

CN Label:

IR1

CN Type:

5-pin header (1x5)

CN Location:

See

6

Figure 3-12

CN Pinouts:

See

6

Table 3-12

The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift

Key Infrared (ASKIR) interfaces.
