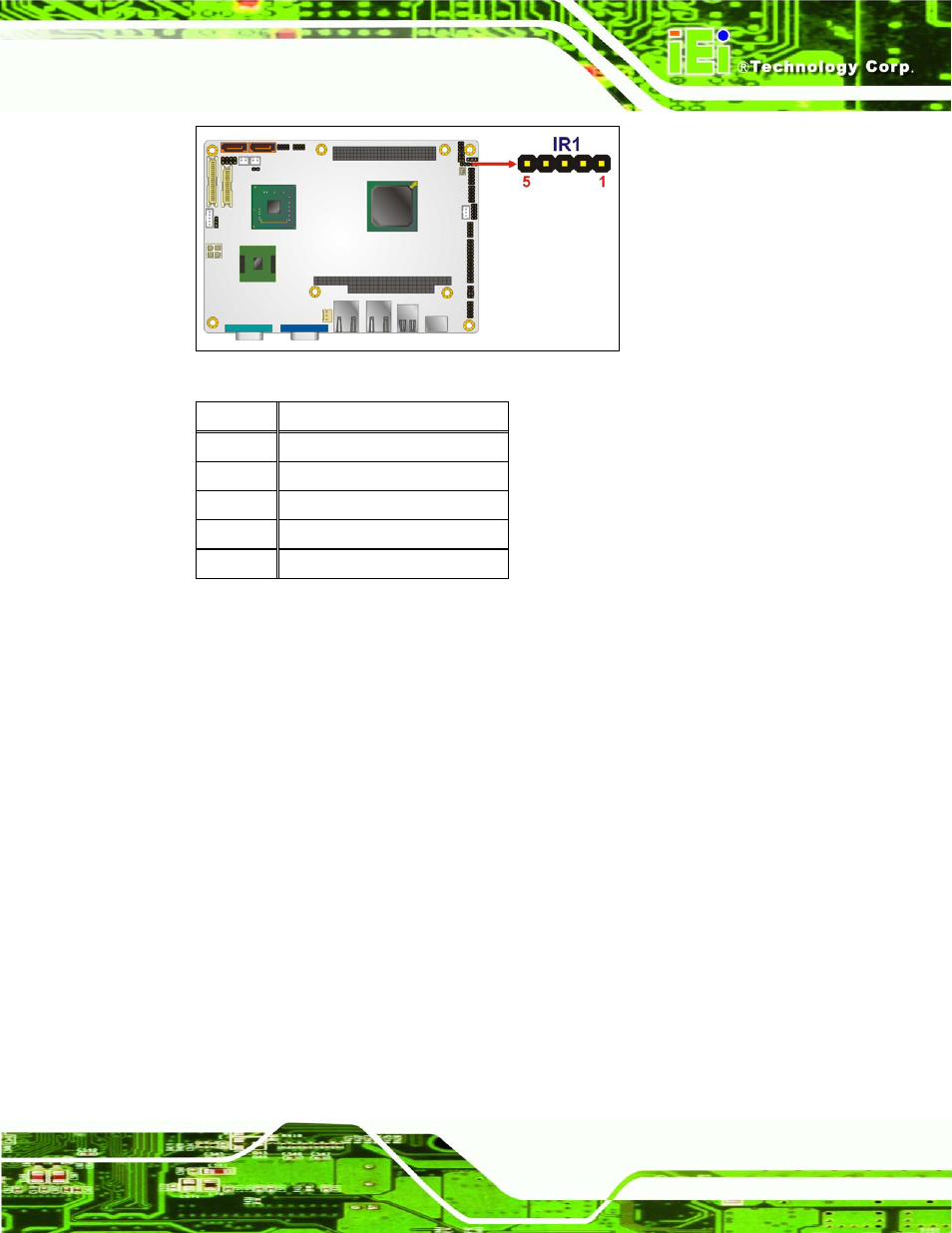

Figure 3-12: Infrared Connector Pinout Locations

PIN NO.

DESCRIPTION

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 3-12: Infrared Connector Pinouts

3.3.11 LVDS LCD Connector

CN Label:

LVDS1

CN Type:

30-pin crimp (2x15)

CN Location:

See

6

Figure 3-13

CN Pinouts:

See

6

Table 3-13

The 30-pin LVDS LCD connectors can be connected to single channel or dual channel,

24-bit or 36-bit LVDS panel.
