4.8.1 LAN Connection (Single Connector)
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 4.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the NANO-945GSE2. See
7
Figure 4-19.

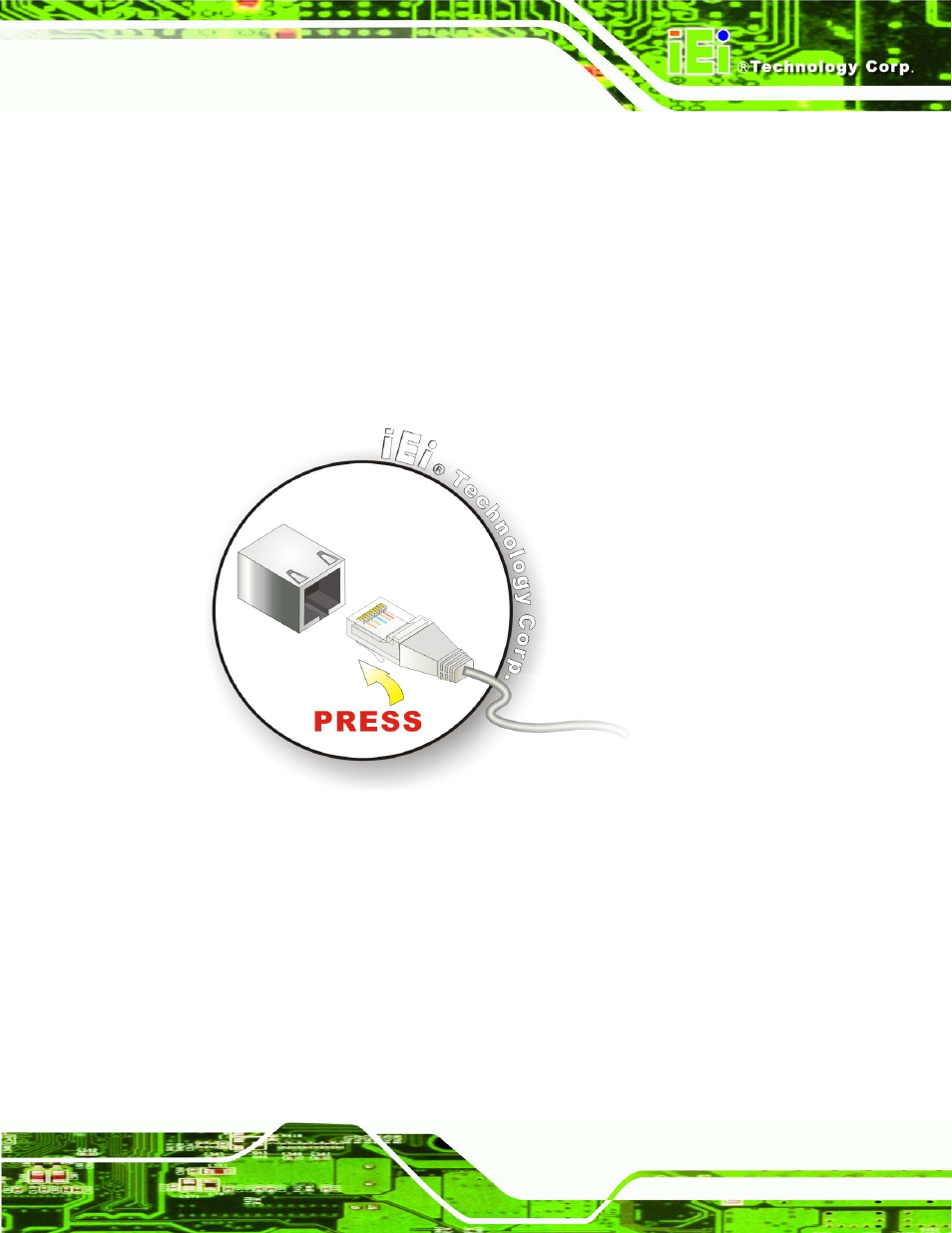

Figure 4-19: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
4.8.2 PS/2 Y-Cable Connection
The NANO-945GSE2 has a PS/2 connector on the external peripheral interface panel.
The dual PS/2 connector is connected to the PS/2 Y-cable that came with the
NANO-945GSE2. One of the PS/2 cables is connected to a keyboard and the other to a
