The cooling fan connector provides a 12V, 500mA current to the cooling fan. The

connector has a "rotation" pin to get rotation signals from fans and notify the system so the

system BIOS can recognize the fan speed. Please note that only specified fans can issue

the rotation signals.

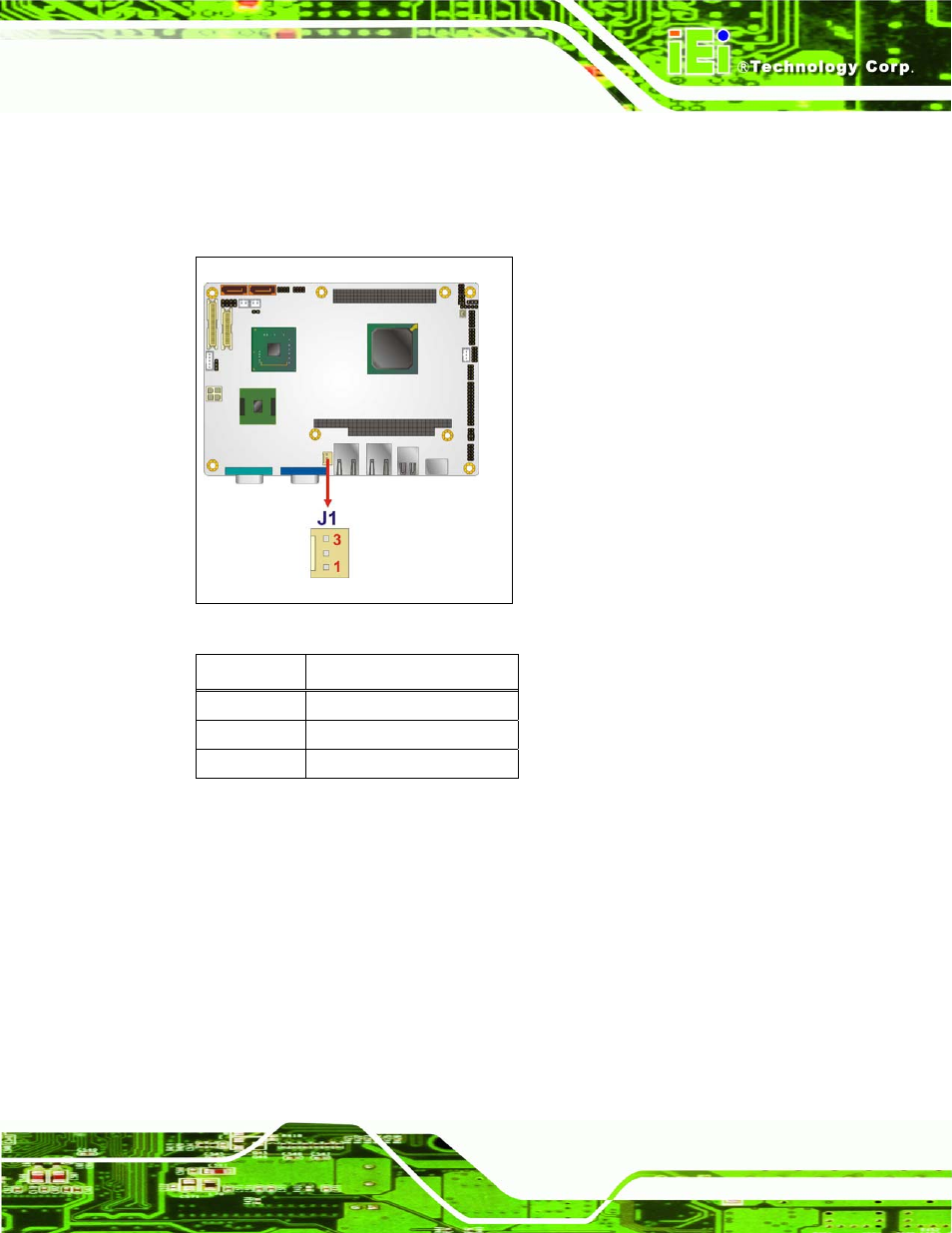

Figure 3-10: +12V Fan Connector Location

PIN NO.

DESCRIPTION

Fan Speed Detect

2 +12V

3 GND

Table 3-10: +12V Fan Connector Pinouts

3.3.9 Front Panel Connector (8-pin)

CN Label:

F_PANEL1

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-11

CN Pinouts:

See Table 3-11

The front panel connector connects to external switches and indicators to monitor and

controls the motherboard. These indicators and switches include:
