3.3.7 Digital Input/Output (DIO) Connector
CN Label: DIO1
CN Type: 10-pin header (2x5)
CN Location: See Figure 3-9
CN Pinouts: See Table 3-9
The digital input/output connector is managed through a Super I/O chip. The DIO
connector pins are user programmable.

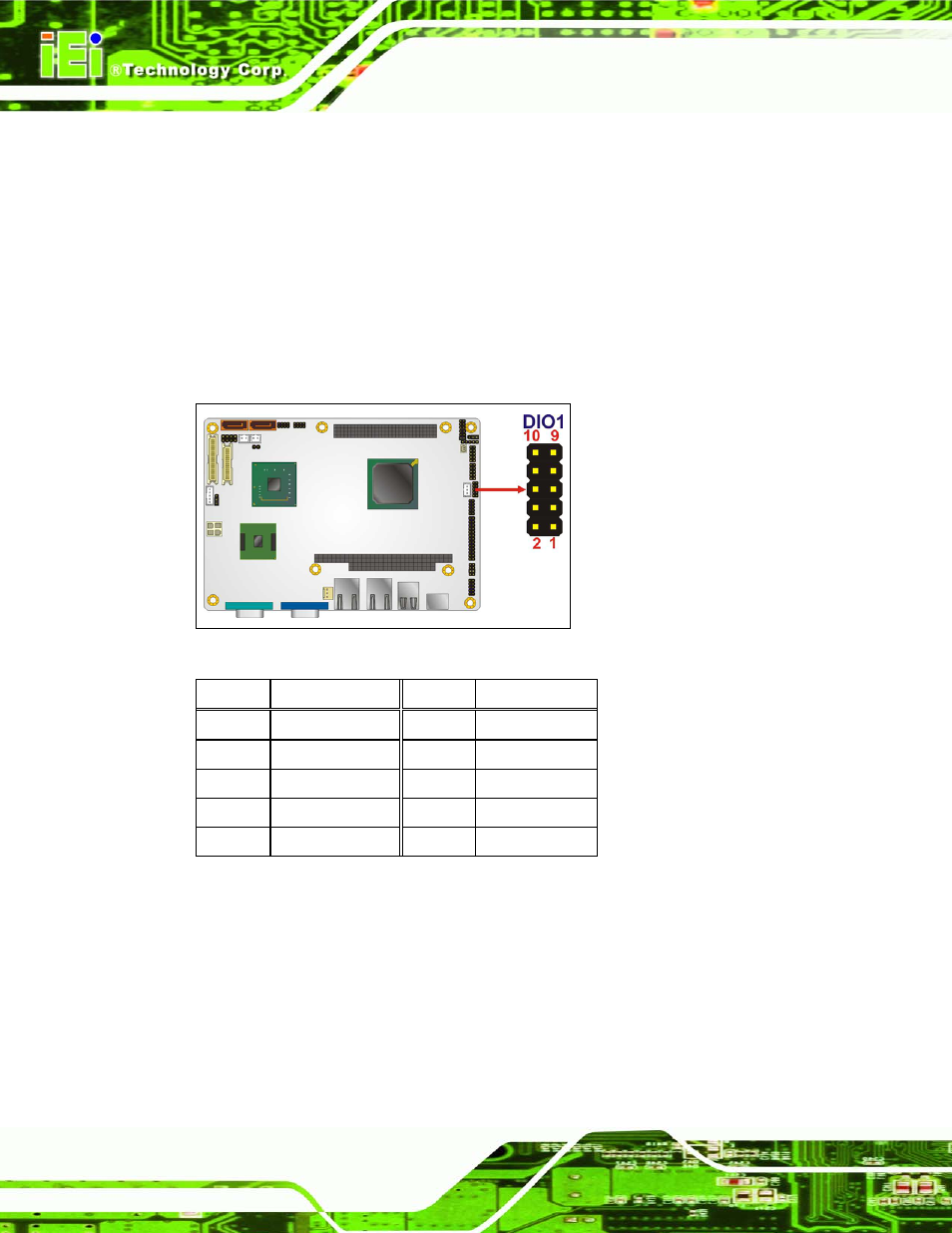

Figure 3-9: DIO Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 VCC
3 Output 3 4 Output 2
5 Output 1 6 Output 0
7 Input 3 8 Input 2
9 Input 1 10 Input 0
Table 3-9: DIO Connector Pinouts
3.3.8 Fan Connector (+12V, 3-pin)
CN Label: J1
CN Type: 3-pin header
CN Location: See
6
Figure 3-10
CN Pinouts: See
6
Table 3-10
