NANO-945GSE2
Page 61

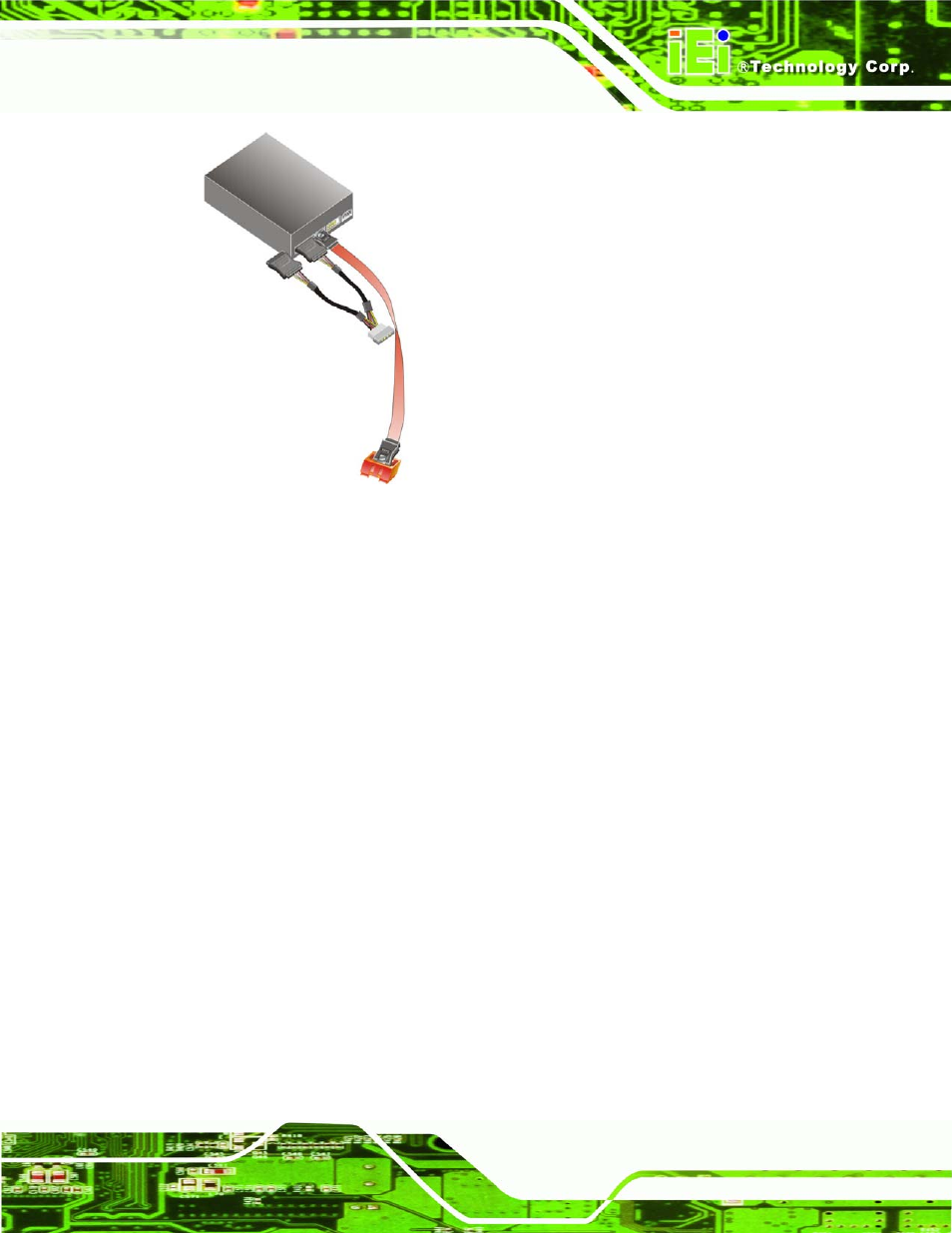

Figure 4-13: SATA Power Drive Connection
4.7.4 Single RS-232 Cable (w/o Bracket)
The single RS-232 cable consists of one serial port connector attached to a serial
communications cable that is then attached to a D-sub 9 male connector. To install the
single RS-232 cable, please follow the steps below.
Step 1: Locate the connector. The location of the RS-232 connector is shown in
Chapter 4.
Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the NANO-945GSE2 serial port connector.
Step 3: Insert the cable connectors . Once the cable connector is properly aligned with
the serial port connector on the NANO-945GSE2, connect the cable connector
to the on-board connector. See Figure 4-14.
