NANO-945GSE2

Page 57

WARNING:

Disconnect the power supply power cord from its AC power source to

prevent a sudden power surge to the NANO-945GSE2.

Step 1:

Locate the power cable. The power cable is shown in the packing list in

Chapter 3.

Step 2:

Connect the Power Cable to the Motherboard. Connect the 4-pin (2x2) Molex

type power cable connector to the AT power connector on the motherboard. See

Figure 4-9.

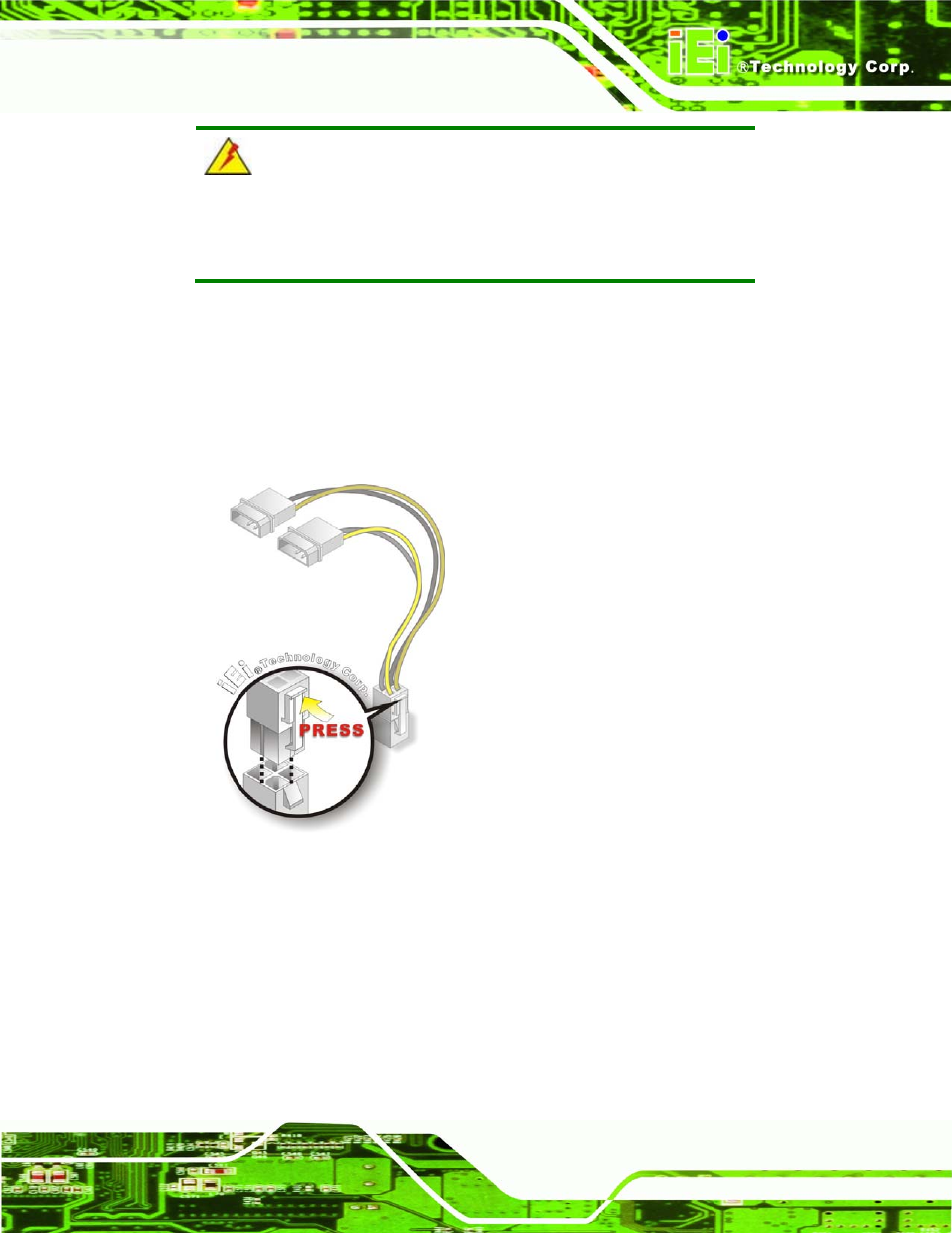

Figure 4-9: Power Cable to Motherboard Connection

Step 3:

Connect Power Cable to Power Supply. Connect one of the 4-pin (1x4) Molex

type power cable connectors to an AT power supply. See Figure 4-10.
