NANO-945GSE2

Page 60

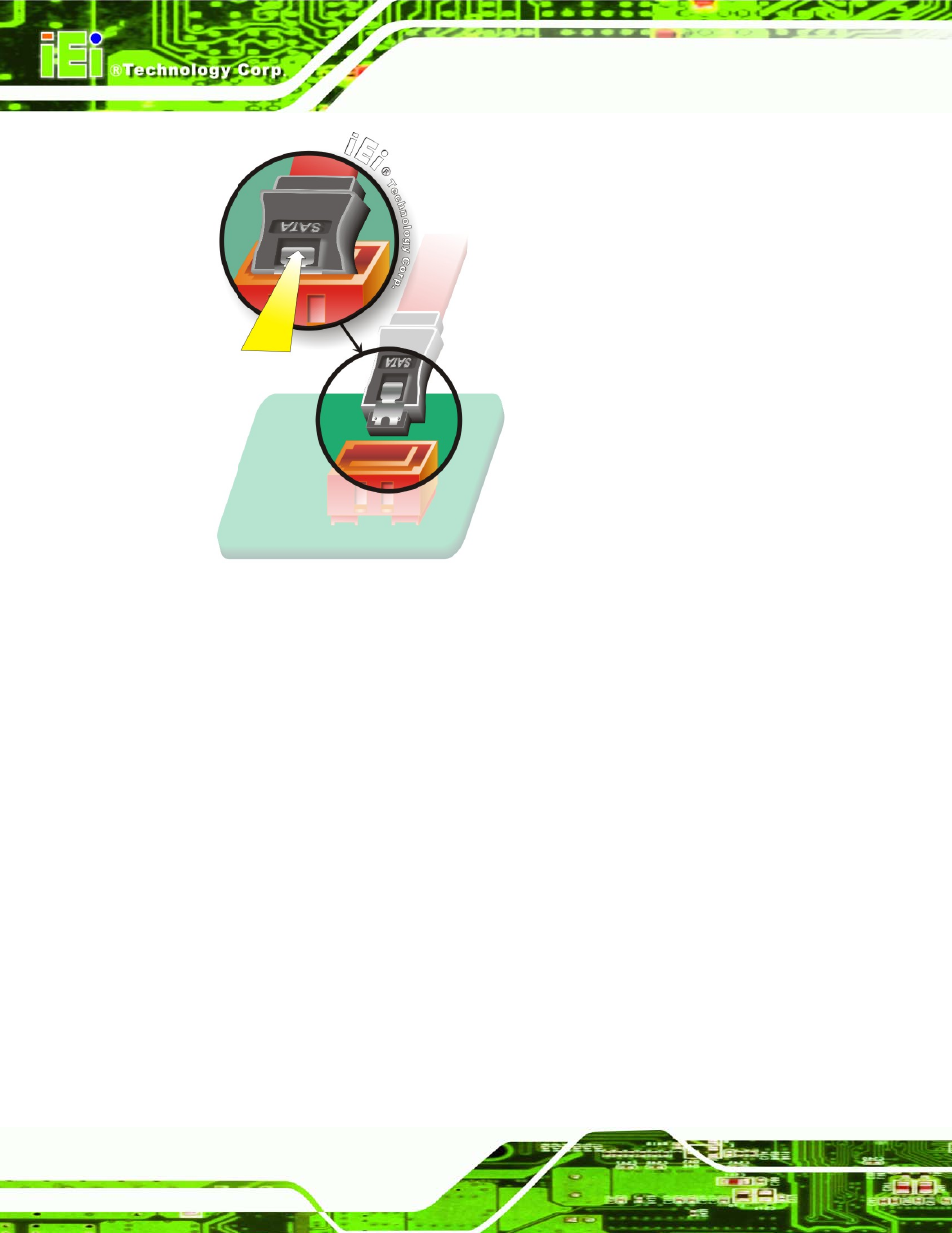

Figure 4-12: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See

7

Figure 4-13.

Step 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See

7

Figure 4-13.

Step 0:
