NANO-945GSE2
Page 48

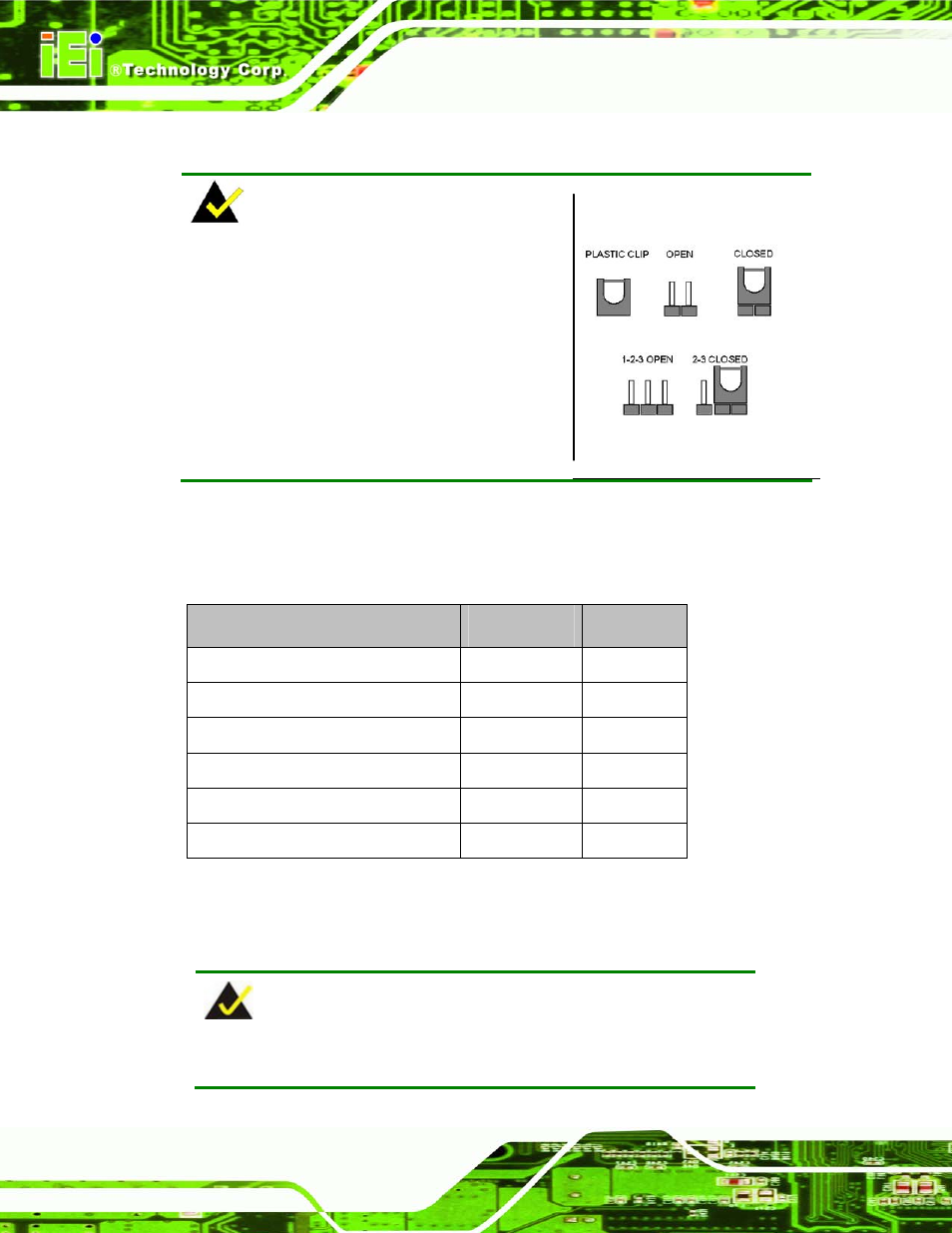

4.5 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper.
Before the NANO-945GSE2 is installed in the system, the jumpers must be set in
accordance with the desired configuration. The jumpers on the NANO-945GSE2 are listed
in
7
Table 4-1.
Description Label Type
AT power mode setting ATXCTL1 2-pin header
Clear CMOS J_CMOS1 3-pin header
COM3 RS-232/422/485 mode setting JP1 6-pin header
COM3 RS-422/485 mode setting JP2 6-pin header
LVDS1 panel resolution J_LCD_TYPE1 8-pin header
LVDS1 voltage select JP3 3-pin header
Table 4-1: Jumpers
4.5.1 AT Power Select Jumper Settings
NOTE:
The AT Power Select Jumper is the same as the ATX Enable
connector.
