NANO-945GSE2

Page 35

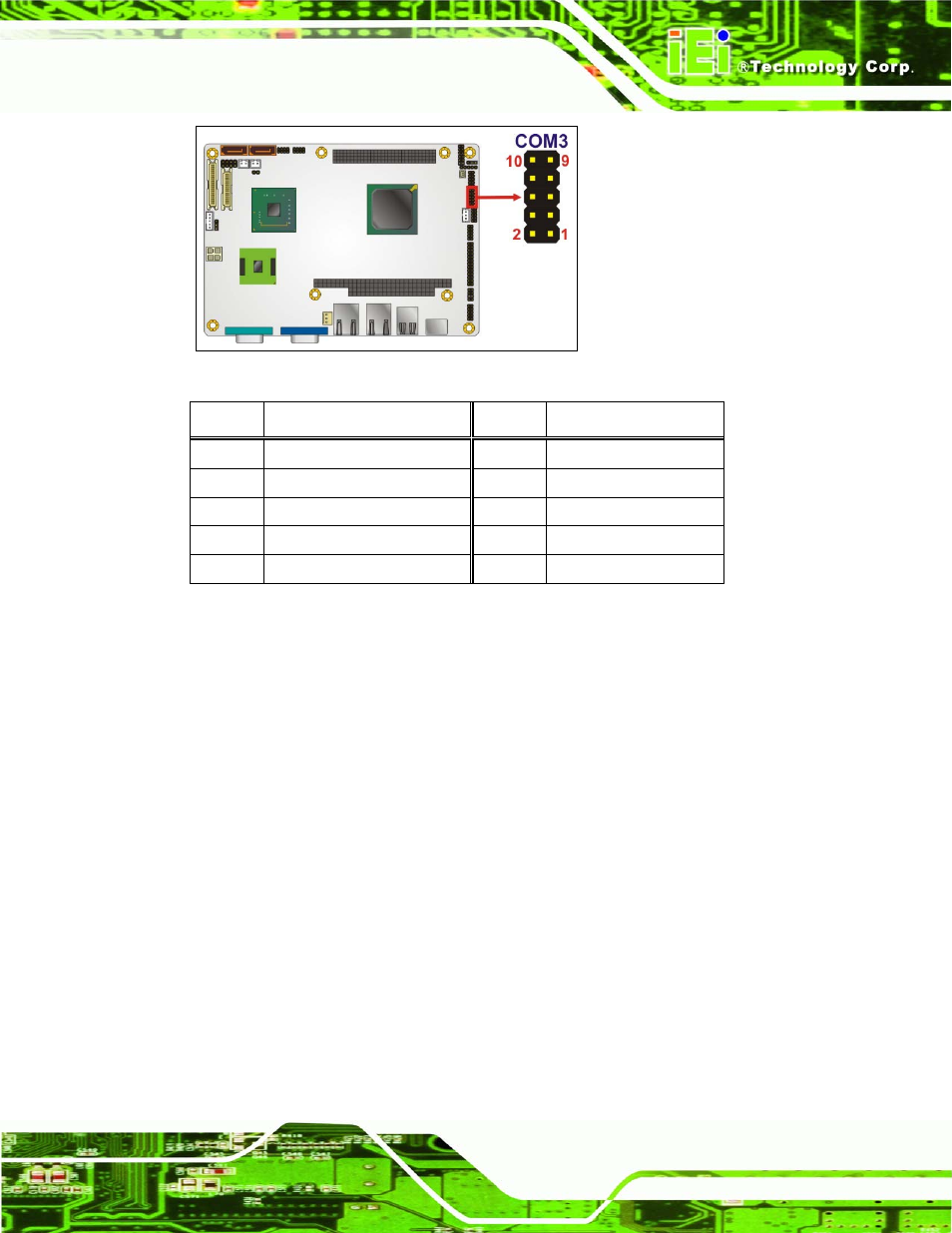

Figure 3-20: COM3 Connector Pinout Locations

PIN NO. DESCRIPTION

PIN NO.

DESCRIPTION

1

DATA CARRIER DETECT (DCD) 2

DATA SET READY (DSR)

3

RECEIVE DATA (RXD)

4

REQUEST TO SEND (RTS)

5

TRANSMIT DATA (TXD)

6

CLEAR TO SEND (CTS)

7

DATA TERMINAL READY (DTR) 8

RING INDICATOR (RI)

9 GND

10

N/C

Table 3-21: COM3 Connector Pinouts

3.3.19 TTL LCD Connector

CN Label:

CN3

CN Type:

40-pin crimp (2x20)

CN Location:

See Figure 3-21

CN Pinouts:

See Table 3-22

The TTL LCD connector can be connected to a LCD screen directly.
