NANO-945GSE2
Page 2
1.1 Overview

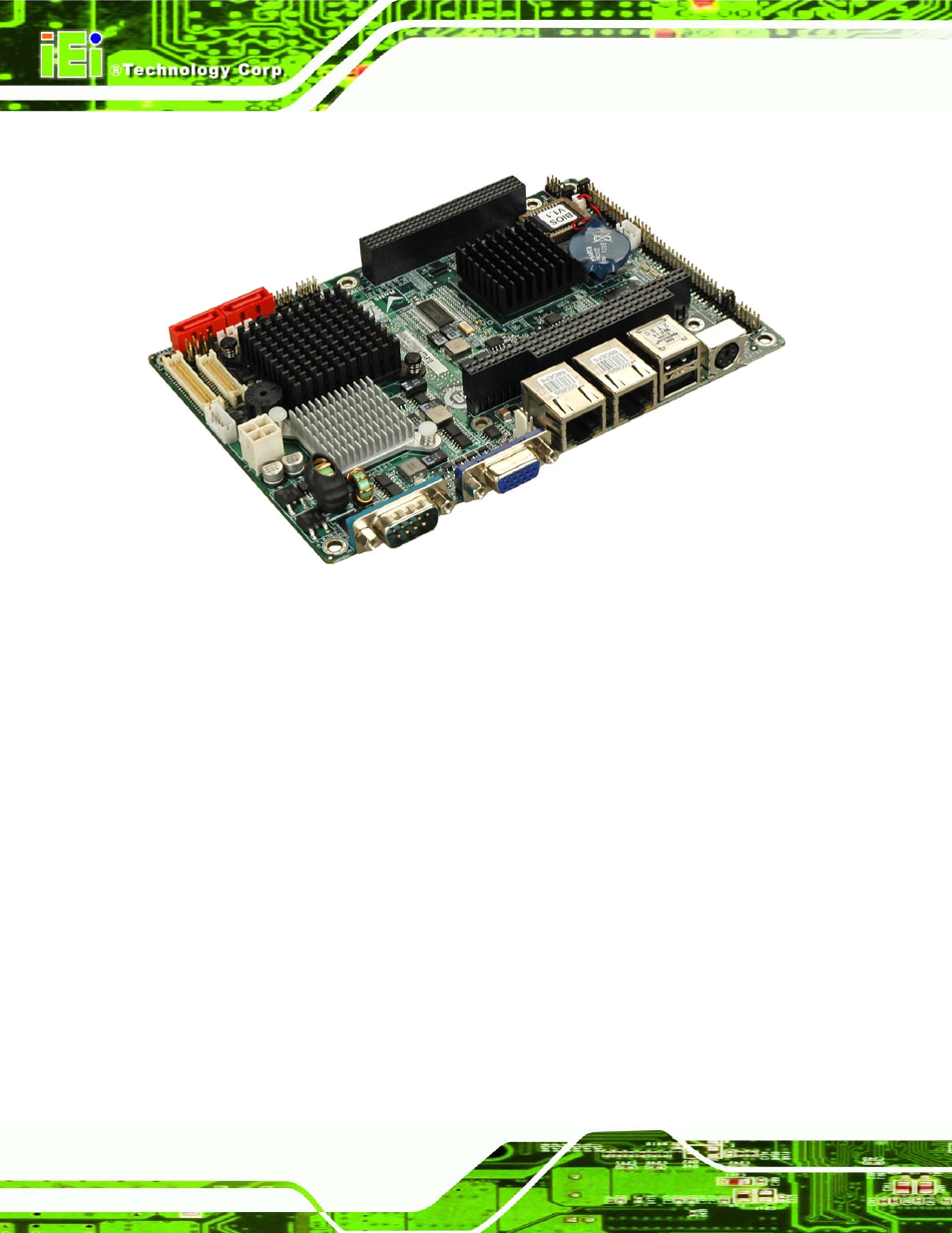

Figure 1-1: NANO-945GSE2
1.1.1 NANO-945GSE2 Introduction
The NANO-945GSE2 EPIC motherboards are embedded 45 nm Intel® Atom™ processor
platforms. The Intel® Atom™ processor N270 embedded on the NANO-945GSE2 has a
1.60 GHz clock speed, a 533 MHz FSB and a 512 KB L2 cache. The NANO-945GSE2
also supports one 200-pin 533 MHz 2.0 GB (max.) DDR2 SDRAM SO-DIMM. The
NANO-945GSE2 comes with an 18-bit dual-channel LVDS connector and a 24-bit dual
channel TTL connector. Dual display, VGA and LVDS or VGA and TTL, is supported. The
NANO-945GSE2 also comes with two PCI Express (PCIe) Gigabit Ethernet (GbE)
connectors, and a PC/104 Plus expansion slot.
1.2 NANO-945GSE2 Overview
The NANO-945GSE2 has a wide variety of peripheral interface connectors.
6
Figure 1-2 is
a labeled photo of the peripheral interface connectors on the NANO-945GSE2.
