NANO-945GSE2
Page 18

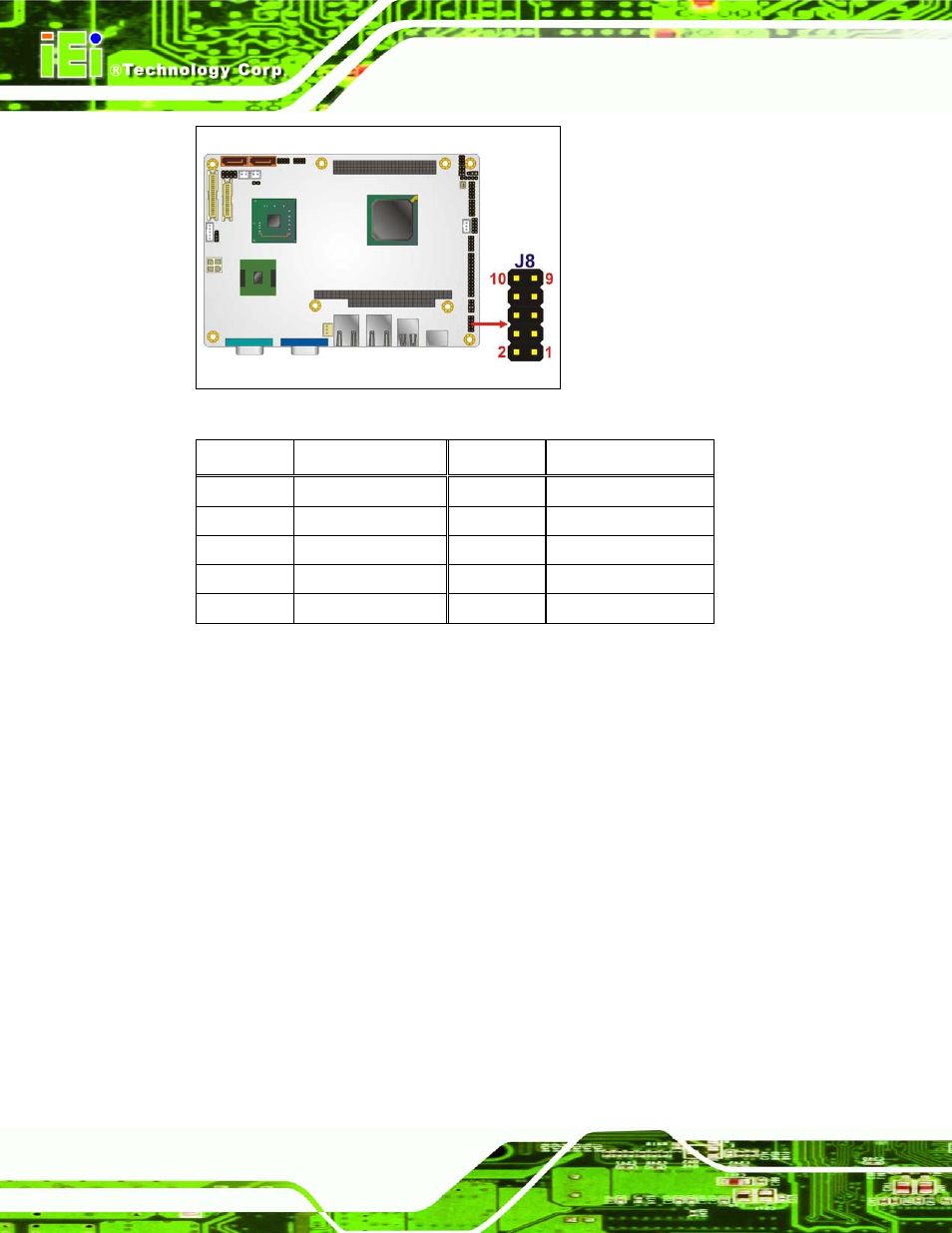

Figure 3-5: Audio Connector Location (9-pin)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LINEOUTR 2 LIR
3 GND 4 GND
5 LINEOUTL 6 LIL
7 GND 8 GND
9 MICIN
Table 3-5: Audio Connector Pinouts (9-pin)
3.3.4 Backlight Inverter Connector
CN Label: INV1
CN Type: 5-pin wafer (1x5)
CN Location: See Figure 3-6
CN Pinouts: See Table 3-6
The backlight inverter connectors provide the backlights on the LCD display connected to
the NANO-945GSE2 with +12V of power.
