NANO-945GSE2

Page 38

1 x Keyboard/mouse connector

2 x LAN connectors

1 x Serial port connector

1 x VGA connector

2 x USB connectors

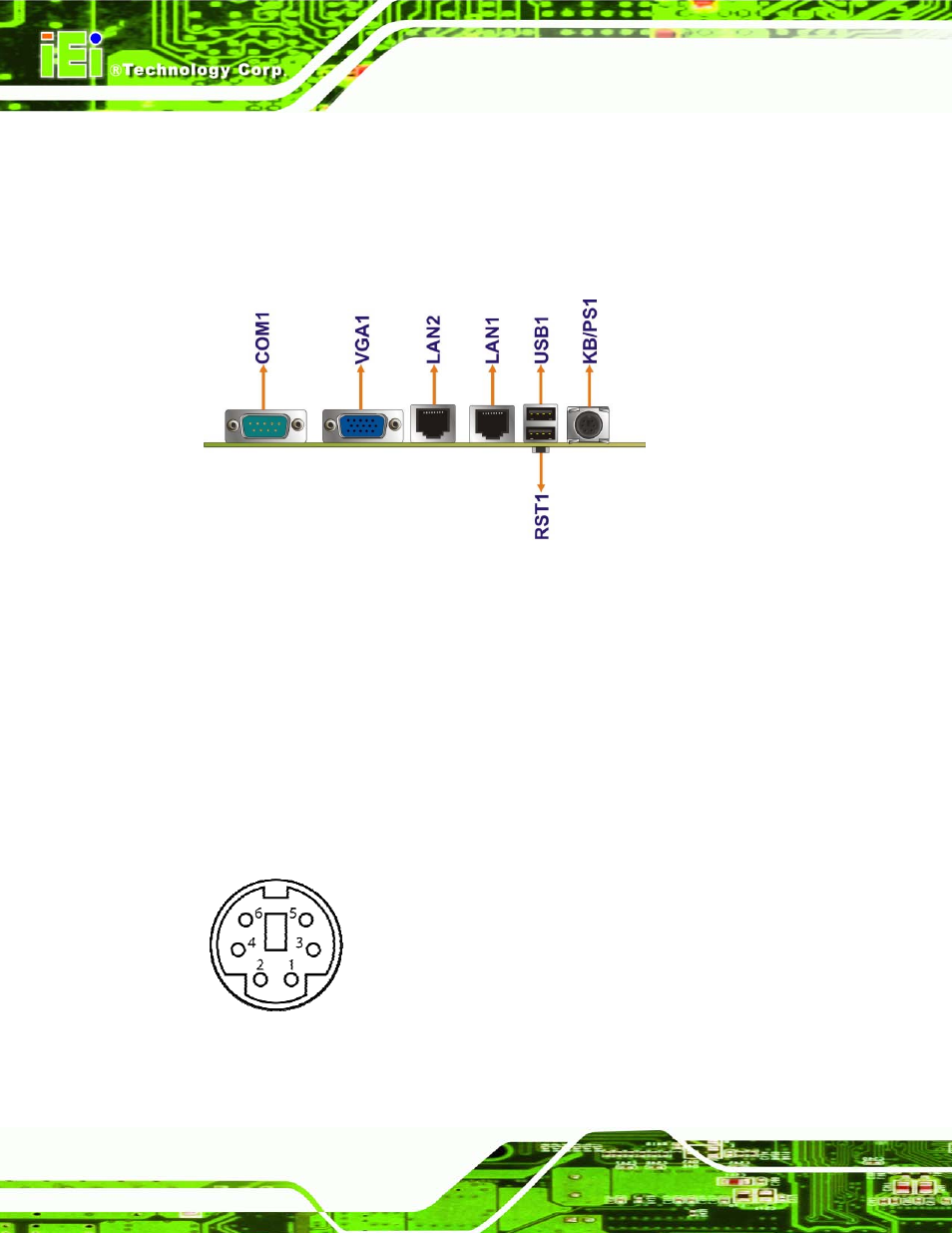

Figure 3-23: NANO-945GSE2 External Peripheral Interface Connector

3.4.1 Keyboard/Mouse Connector

CN Label:

KB/PS1

CN Type:

PS/2

CN Location:

See Figure 3-23 (labeled 1)

CN Pinouts:

See Figure 3-24, Table 3-24

The NANO-945GSE2 keyboard and mouse connector is a standard PS/2 connector.

Figure 3-24: PS/2 Pinout and Configuration
