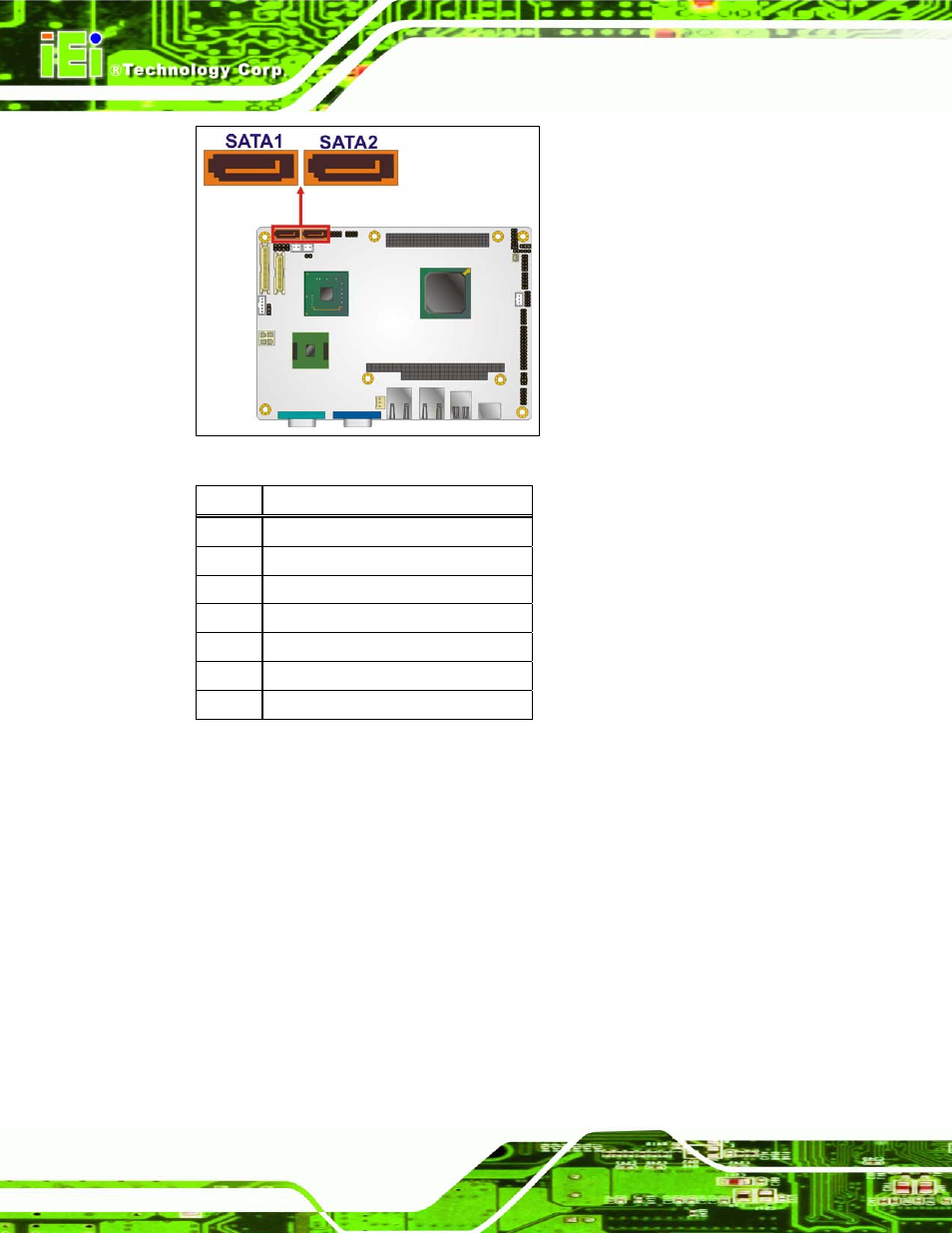

Figure 3-17: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-18: SATA Drive Connector Pinouts

3.3.16 SATA Power Connectors

CN Label:

CN1 and CN2

CN Type:

2-pin SATA power connector

CN Location:

See Figure 3-18

CN Pinouts:

See Table 3-19

Use the SATA Power Connectors to connect to SATA device power connections.
