1.2.1 Dimensions
The dimensions of the board are listed below:
Length: 165 mm
Width: 115 mm

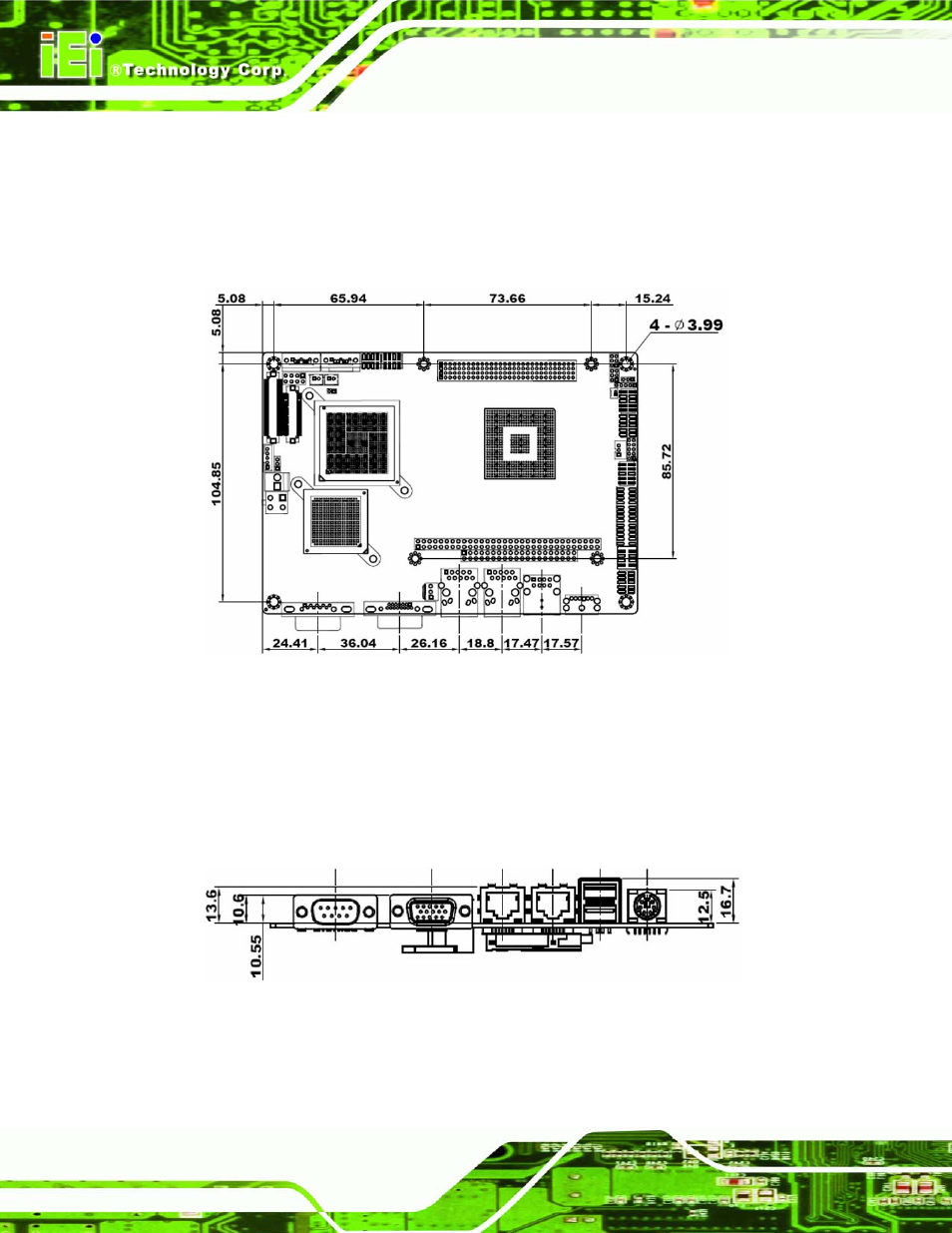

Figure 1-3: NANO-945GSE2 Dimensions (mm)
1.2.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in
6
Figure 1-4.
Figure 1-4: External Interface Panel Dimensions (mm)
