IMBA-C604EP ATX Server Board

Page 65

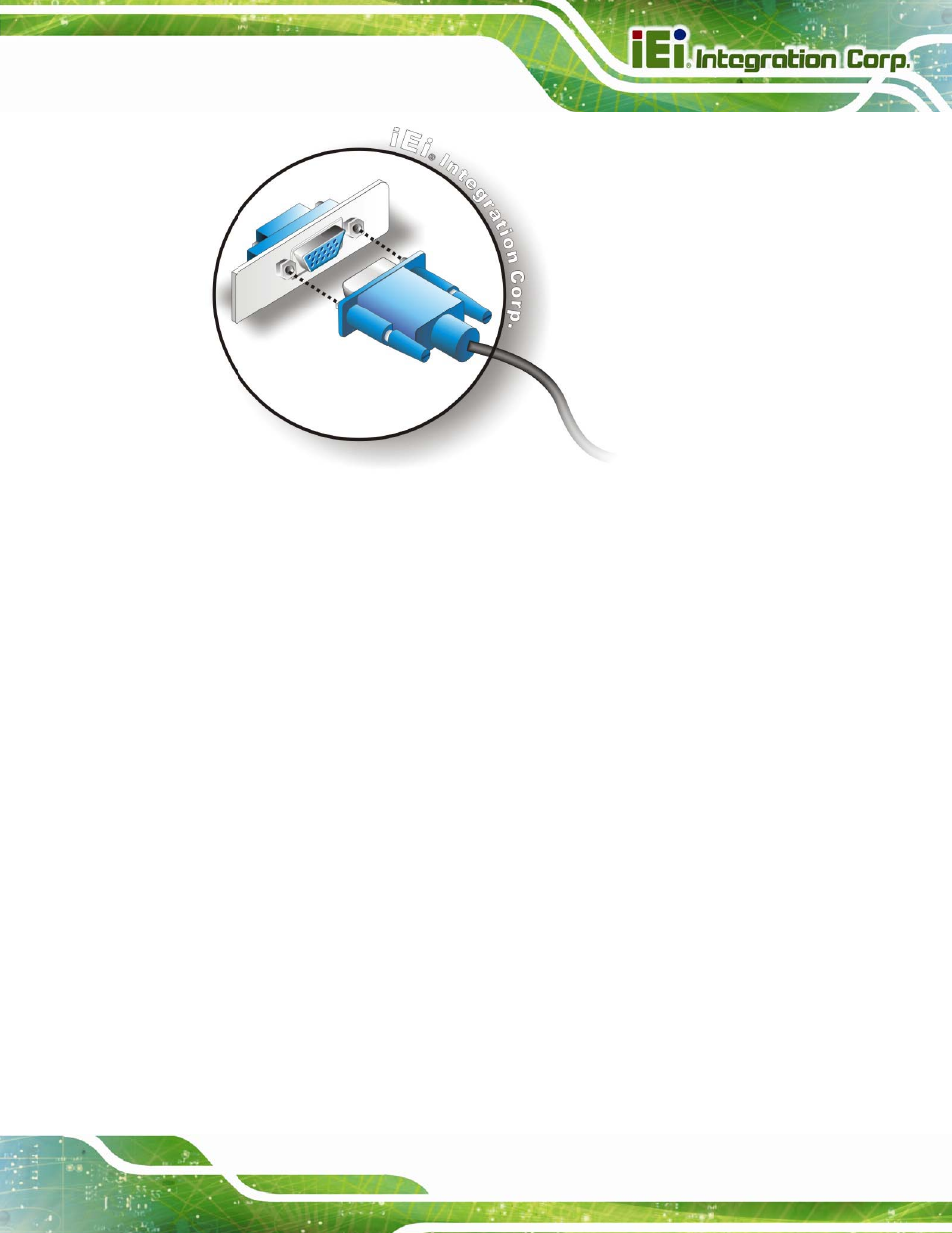

Figure 4-17: VGA Connector

Step 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.

4.6 Installing USB 3.0 Driver during Windows® 7 OS Installation

If installing the Windows® 7 OS by using the USB 3.0 ports, loading the USB 3.0 driver

during the OS installation is necessary. Follow the instructions below to complete the task.

Step 1:

Insert the USB flash drive containing the USB 3.0 driver into one of the USB 2.0

ports on the IMBA-C604EP.

Step 2:

After clicking the Install now button during the OS installation (Figure 4-18), the

Load Driver screen appears (Figure 4-19). Click Browse.
