IMBA-C604EP ATX Server Board

Page 57

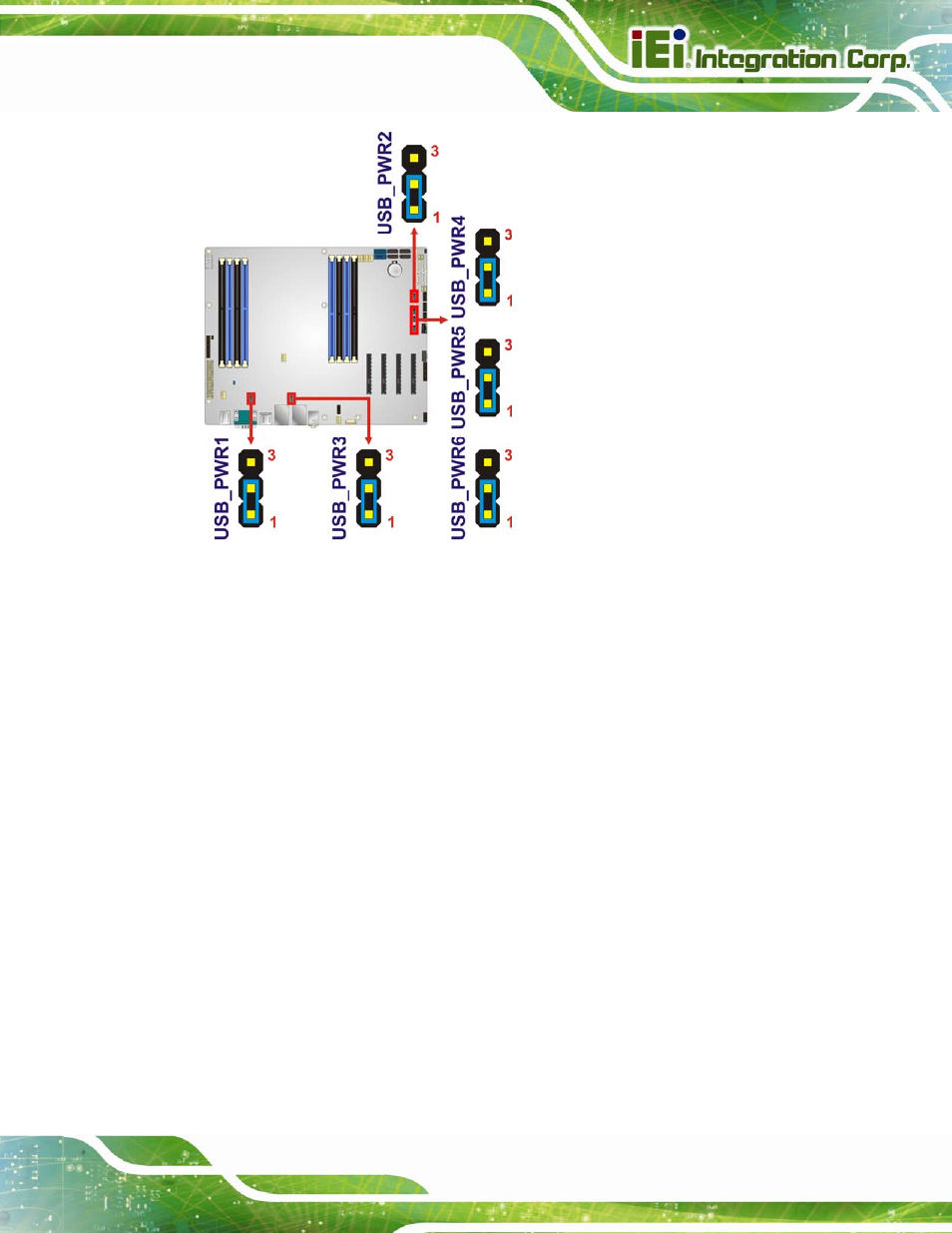

Figure 4-9: USB Power Selection Jumper Locations

4.4 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the onboard connectors.

4.4.1 SATA Drive Connection

The IMBA-C604EP is shipped with four SATA drive cables. To connect the SATA drives to

the connectors, please follow the steps below.

Step 1:

Locate the connectors. The locations of the SATA drive connectors are shown

in Chapter 3.

Step 2:

Insert the cable connector. Insert the cable connector into the on-board SATA

drive connector until it clips into place. See Figure 4-10.
