IMBA-C604EP ATX Server Board

Page 56

Setting

Description

Open

Normal operation (Default)

Closed

Clear CMOS setup

Table 4-3: Clear CMOS Jumper Settings

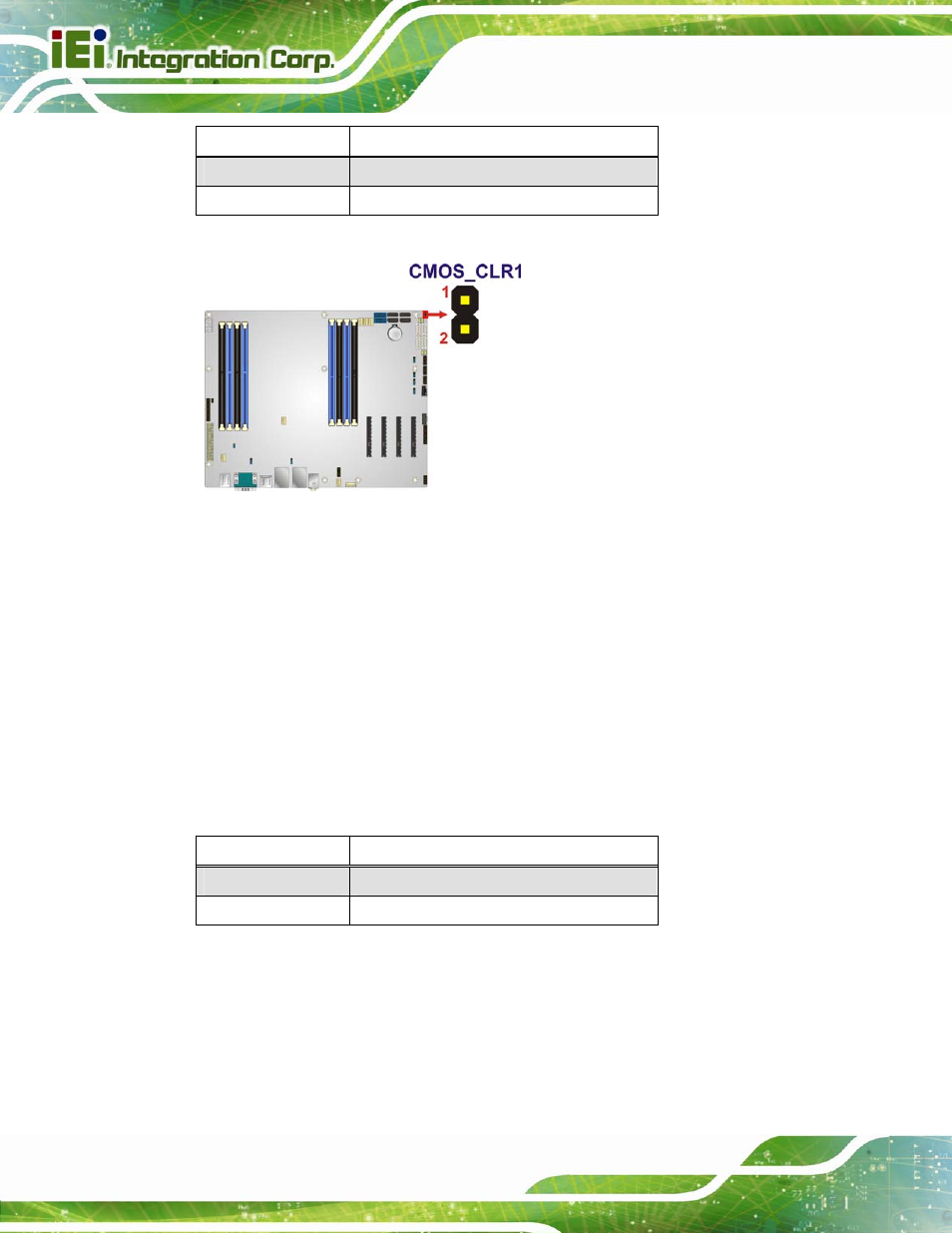

Figure 4-8: Clear CMOS Jumper Location

4.3.3 USB Power Selection Jumpers

Jumper Label:

USB_PWR1, USB_PWR2, USB_PWR3, USB_PWR4,

USB_PWR5, USB_PWR6

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-4

Jumper Location:

See Figure 4-9

The USB power selection jumpers specify the USB power.

Setting Description

Short 1-2

+5V_Dual (Default)

Short 2-3

+5V

Table 4-4: USB Power Selection Jumper Settings
