IMBA-C604EP ATX Server Board

Page 53

NOTE:

Installing the memory modules with the same memory size is highly

recommended.

To install a DIMM, please follow the steps below and refer to Figure 4-6.

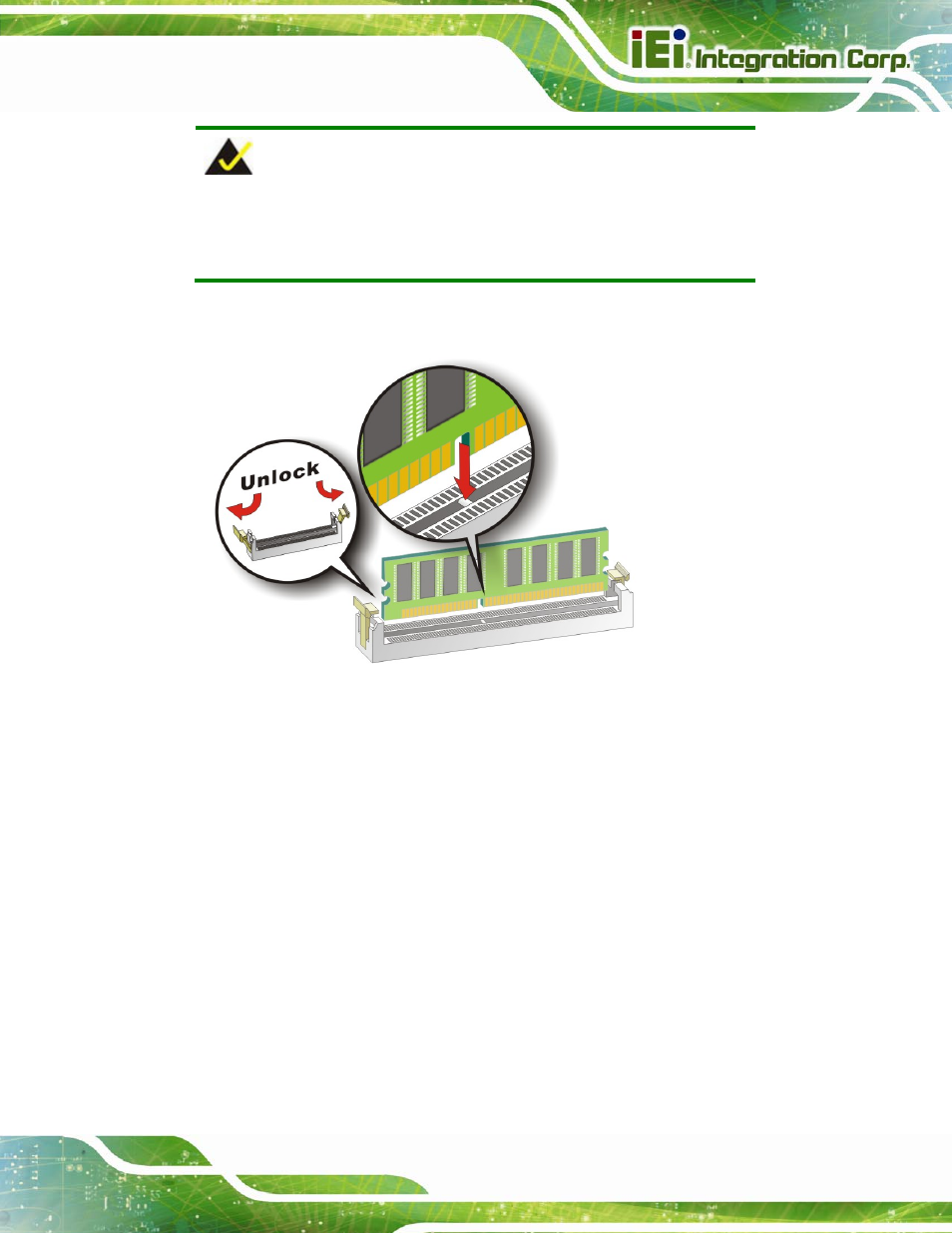

Figure 4-6: DIMM Installation

Step 1:

Open the DIMM socket handles. Open the two handles outwards as far as

they can. See Figure 4-6.

Step 2:

Align the DIMM with the socket. Align the DIMM so the notch on the memory

lines up with the notch on the memory socket. See Figure 4-6.

Step 3:

Insert the DIMM. Once aligned, press down until the DIMM is properly seated.

Clip the two handles into place. See Figure 4-6.

Step 4:

Removing a DIMM. To remove a DIMM, push both handles outward. The

memory module is ejected by a mechanism in the socket.

Step 0:
