IMBA-C604EP ATX Server Board

Page 50

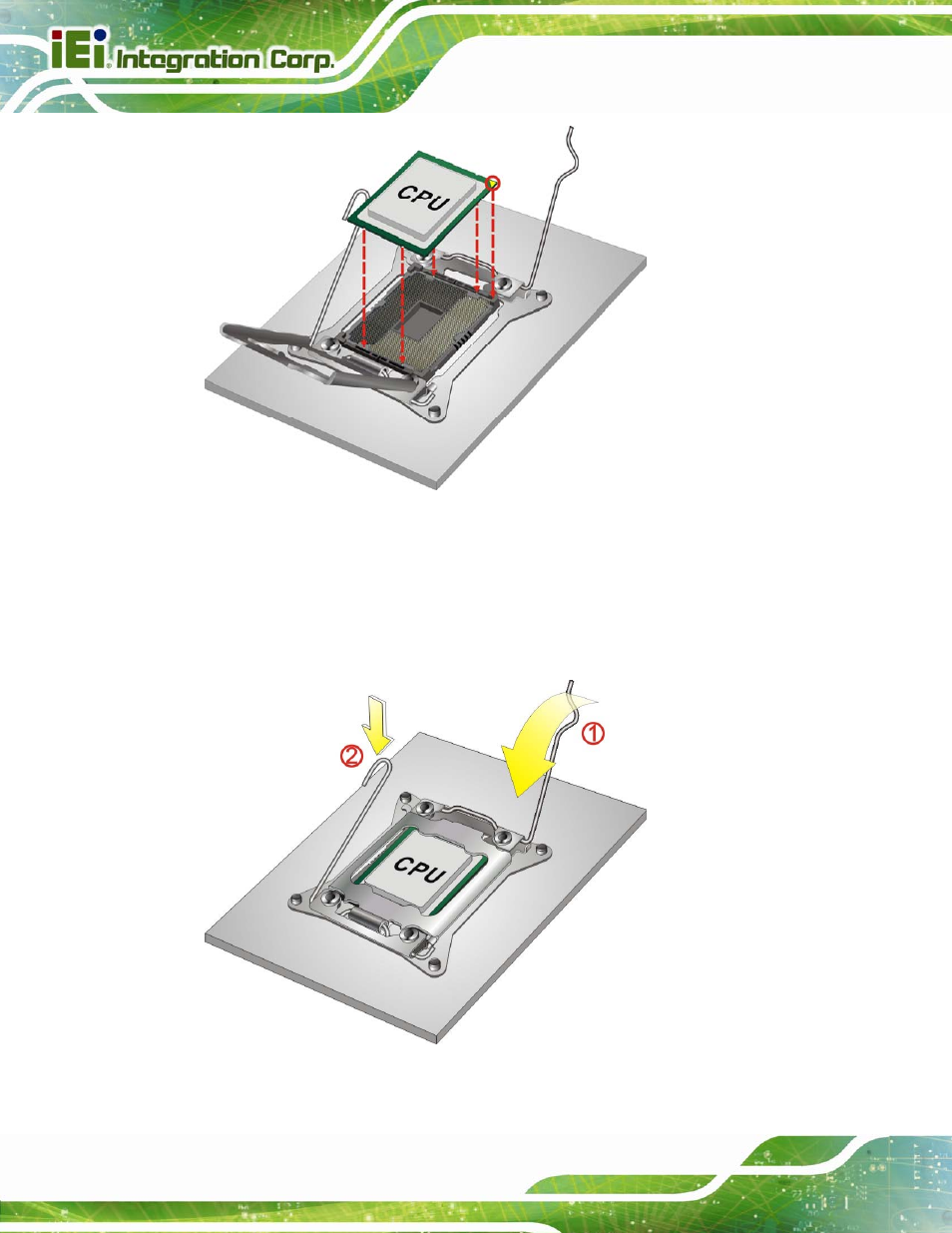

Figure 4-3: Insert the Socket LGA2011 CPU

Step 7:

Close the CPU socket. Close the load plate and secure the load levers in the

order as shown in Figure 4-4. Engage the load lever by pushing it back to its

original position. There will be some resistance, but will not require extreme

pressure.

Figure 4-4: Close the Socket LGA2011
