IMBA-C604EP ATX Server Board
Page 60
Step 3: Insert the cable connectors . Once the cable connectors are properly aligned
with the USB connectors on the IMBA-C604EP, connect the cable connectors to
the on-board connectors. See Figure 4-12.

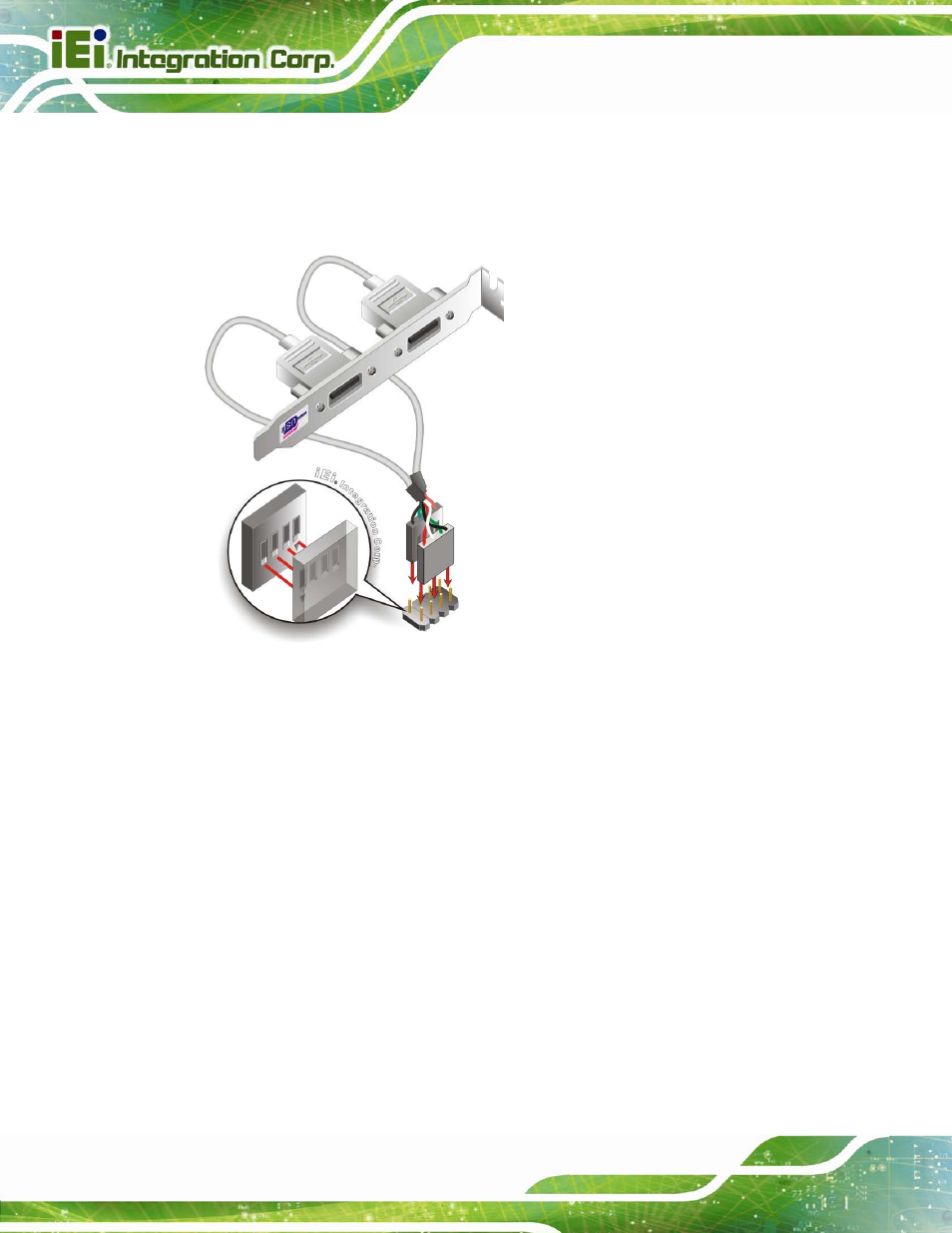

Figure 4-12: Dual USB Cable Connection
Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
bracket. To secure the bracket to the chassis please refer to the installation
instructions that came with the chassis.
4.5 External Peripheral Interface Connection
This section describes connecting devices to the external connectors on the
IMBA-C604EP.
4.5.1 Audio Connector
The audio jacks on the external audio connector enable the IMBA-C604EP to be
connected to a stereo sound setup. To install the audio devices, follow the steps below.
