IMBA-C604EP ATX Server Board
Page 59

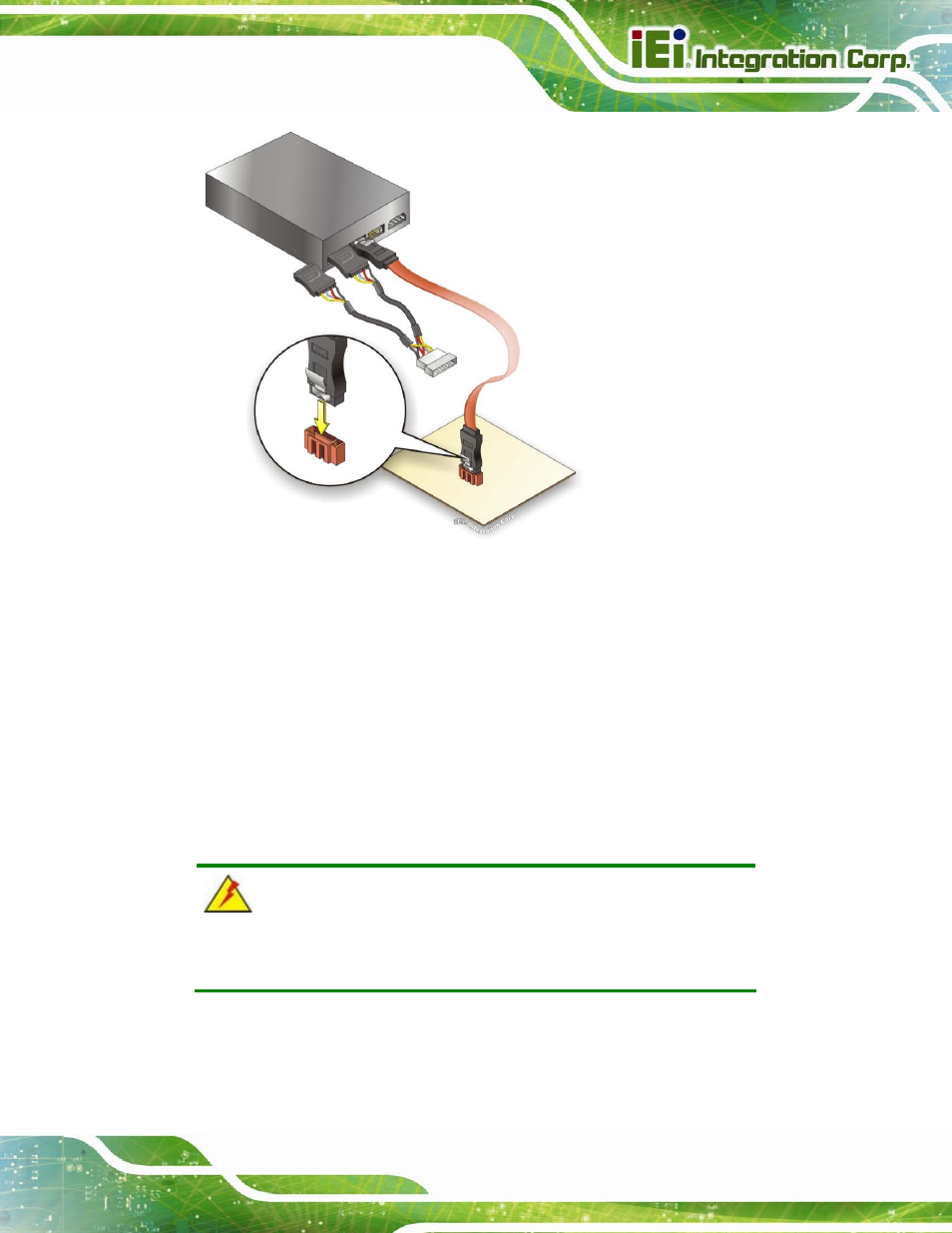

Figure 4-11: SATA Power Drive Connection
The SATA power cable can be bought from IEI. See Optional Items in Section 2.4.
4.4.2 Dual-Port USB Cable with Slot Bracket (Optional)
A dual-port USB 2.0 cable can be purchased separately. To connect the USB cable
connector, please follow the steps below.
Step 1: Locate the connectors. The locations of the USB connectors are shown in
Chapter 3.
Step 2: Align the connectors. The cable has two connectors. Correctly align pin 1on
each cable connector with pin 1 on the IMBA-C604EP USB connector.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
