IMBA-C604EP ATX Server Board

Page 21

The chassis intrusion connector connects to a chassis intrusion sensor or switch to detect

the chassis intrusion event.

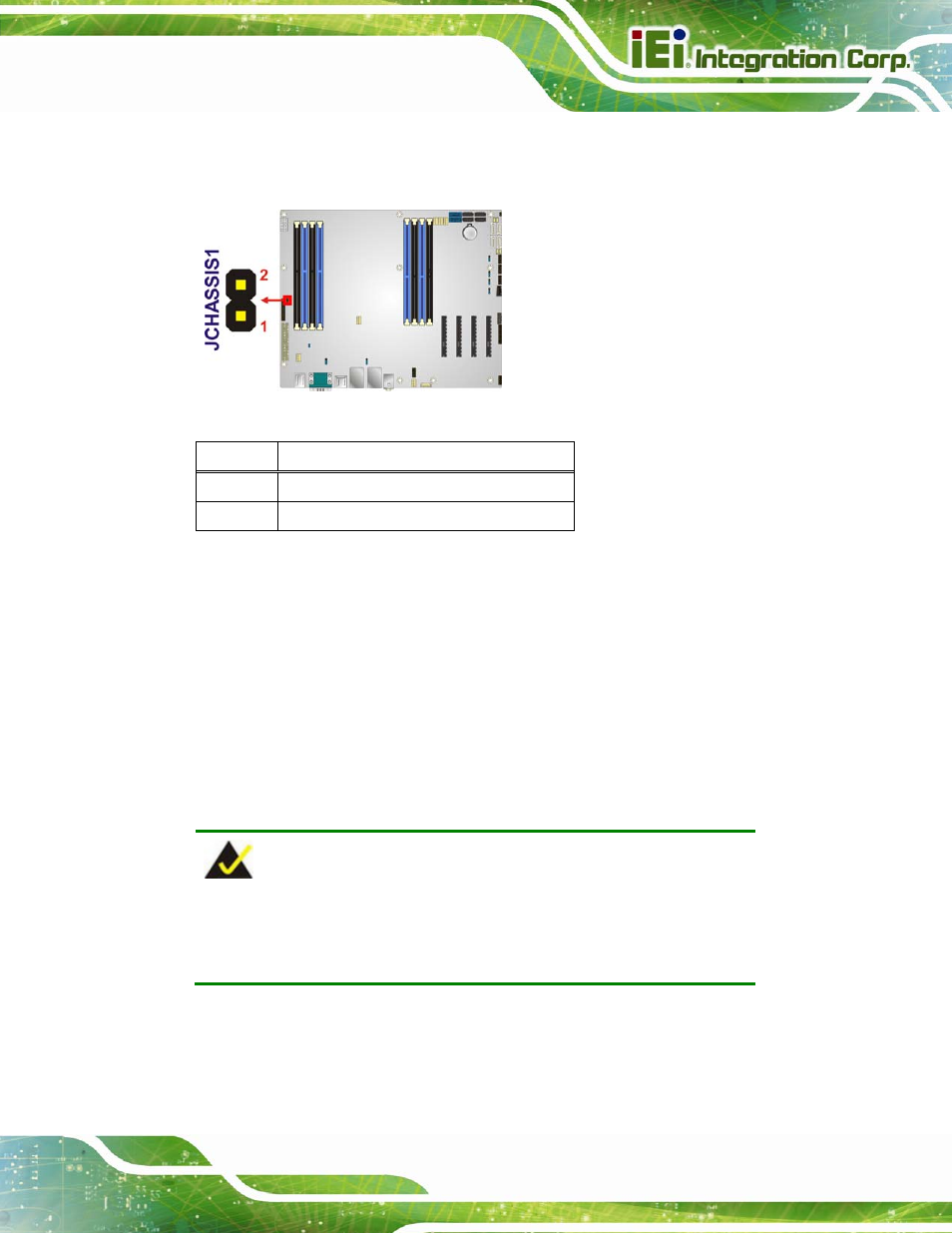

Figure 3-5: Chassis Intrusion Connector Location

Pin Description

1 CHASSIS_OPEN

2 GND

Table 3-5: Chassis Intrusion Connector Pinouts

3.2.5 DDR3 DIMM Slots

CN Label:

DIMMA1, DIMMA2, DIMMB1, DIMMB2, DIMMC1, DIMMC2,

DIMMD1, DIMMD2

CN Type:

DDR3 DIMM slot

CN Location:

See

7

Figure 3-6

The DIMM slots are for DDR3 DIMM memory modules.

NOTE:

When using only one DIMM for the system, always install it to the black

slot (DIMMA1, DIMMB1, DIMMC1 or DIMMD1).
